Viscosity: Al-Cu, Al-Ni, and Cu-Ni-Al

Viscosity of liquid can be calculated directly using the TCS High Entropy Alloys Database (TCHEA) as a function of chemical composition and temperature.

The viscosity thermophysical property data is included with the TCS High Entropy Alloys Database (TCHEA) as of version 4 (TCHEA4).

Al-Cu

The dynamic viscosity of Al-Cu binary system at 1373 K is calculated.

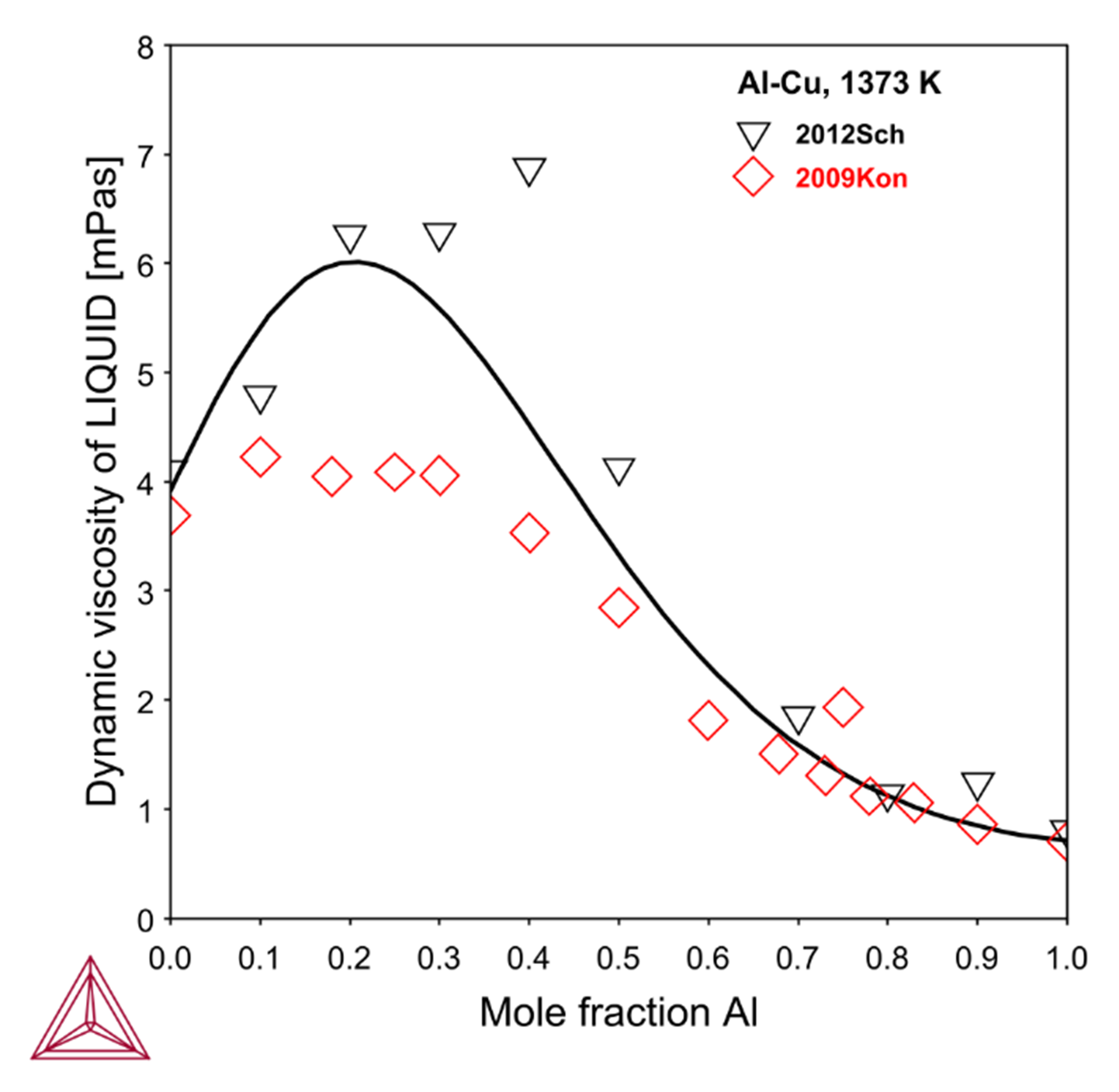

Calculated dynamic viscosity of Al-Cu at 1373 K along with experimental data

Figure 1: Calculated dynamic viscosity of Al-Cu at 1373 K along with experimental data from [2009Kon; 2012Sch].

Al-Ni

The dynamic viscosity of Al-Ni binary system at 1373 K is calculated in the following plot.

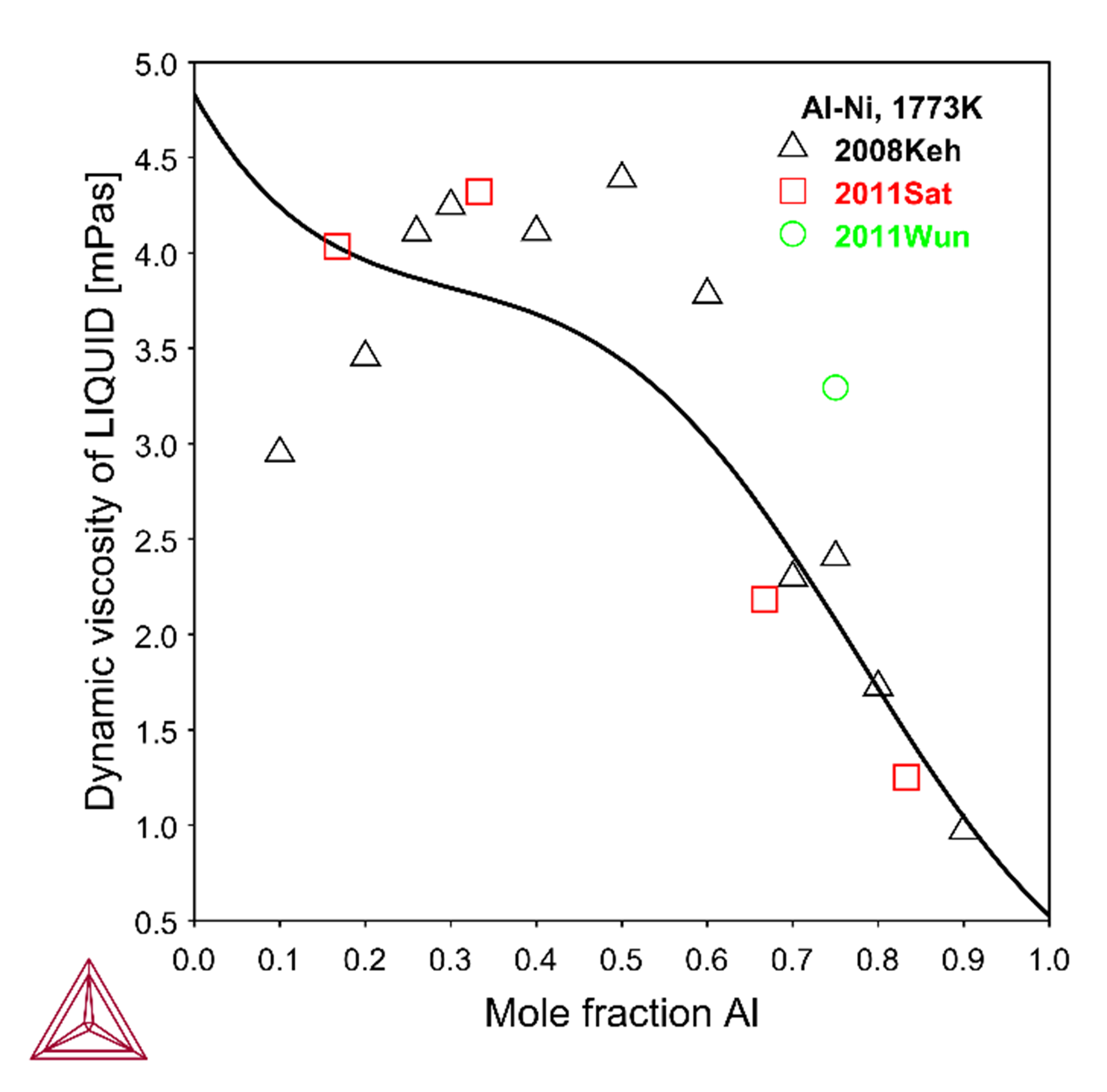

Calculated dynamic viscosity of Al-Ni at 1773 K along with experimental data

Figure 2: Calculated dynamic viscosity of Al-Ni at 1773 K along with experimental data from [2008Keh; 2011Sat; 2011Wun].

Cu-Ni-Al

The kinematic viscosity of equiatomic liquid alloys Cu-Ni-Al is shown.

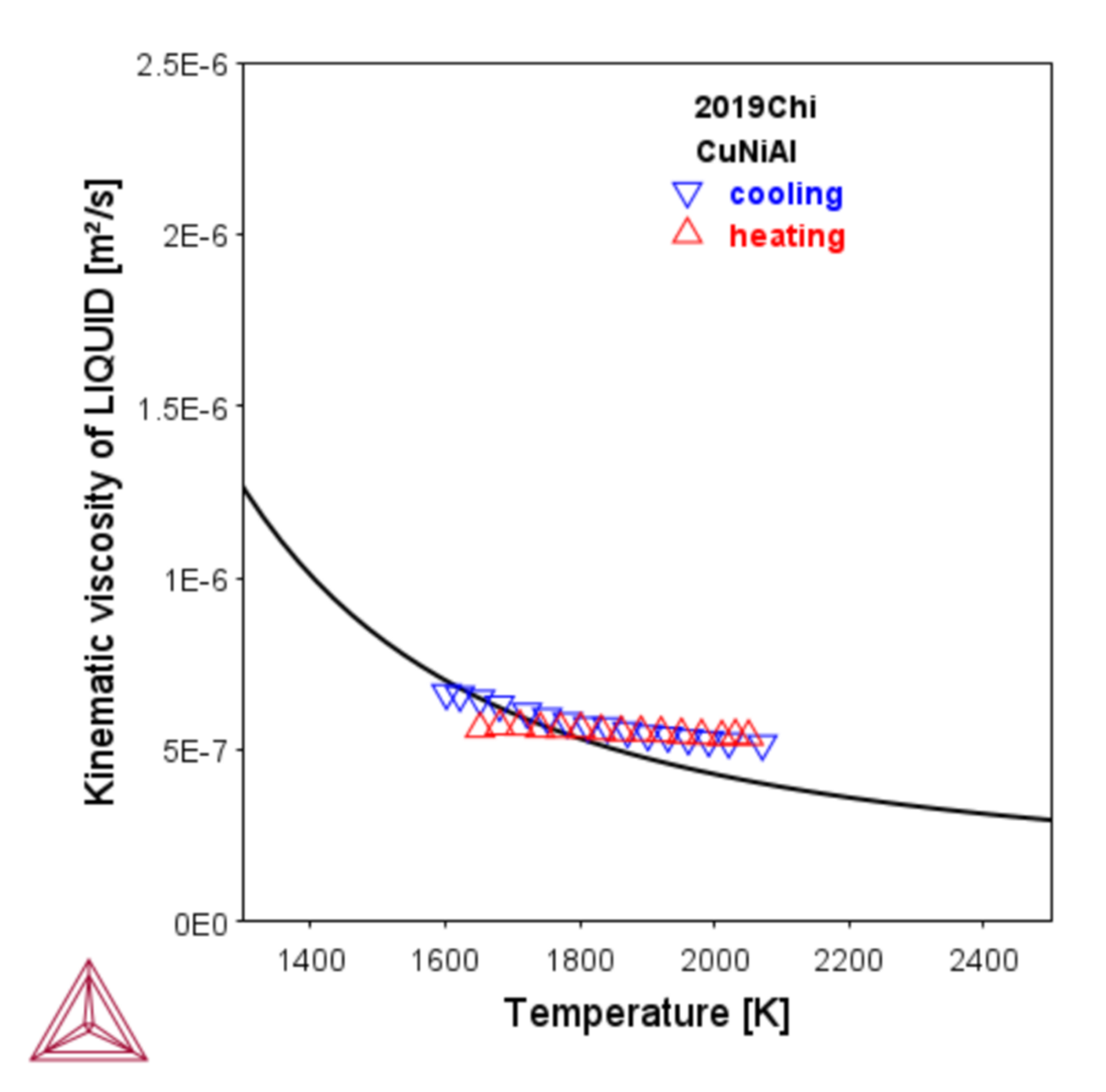

Calculated kinematic viscosity of equiatomic CuNiAl alloy along with experimental data

Figure 3: Calculated kinematic viscosity of equiatomic Cu-Ni-Al alloy along with experimental data from [2019Chi].

References

 [2008Keh]  M. Kehr, M. Schick, W. Hoyer, I. Ergy, Viscosity of the binary system Al-Ni. High Temp. - High Press. 37, 361–369 (2008).

 [2009Kon] N. Y. Konstantinova, P. S. Popel’, D. A. Yagodin, The kinematic viscosity of liquid copper-aluminum alloys. High Temp. 47, 336–341 (2009).

[2011Sat]  Y. Sato, Representation of the Viscosity of Molten Alloy as a Function of the Composition and Temperature. Jpn. J. Appl. Phys. 50, 11RD01 (2011).

[2011Wun]  R. K. Wunderlich, H.-J. Fecht, Surface tension and viscosity of NiAl catalytic precursor alloys from microgravity experiments. Int. J. Mater. Res. 102, 1164–1173 (2011).

 [2012Sch]  M. Schick, J. Brillo, I. Egry, B. Hallstedt, Viscosity of Al–Cu liquid alloys: measurement and thermodynamic description. J. Mater. Sci. 47, 8145–8152 (2012).

[2019Chi]  O. Chikova, V. Tsepelev, V. V’yukhin, K. Shmakova, V. Il’in, Viscosity and Electrical Resistivity of Liquid CuNiAl, CuNiAlCo, CuNiAlCoFe Alloys of Equiatomic Compositions. Acta Metall. Slovaca. 25, 259–266 (2019).
