Viscosity Example: Ag-Au-Cu Alloys

The viscosity thermophysical property data is included with the TCS Noble Metal Alloys Database (TCNOBL) starting with version 3 (TCNOBL3).

One of the most important ternary systems for noble metal alloys is Ag-Au-Cu and this ternary system is used as example for calculation of dynamic viscosity of liquid.

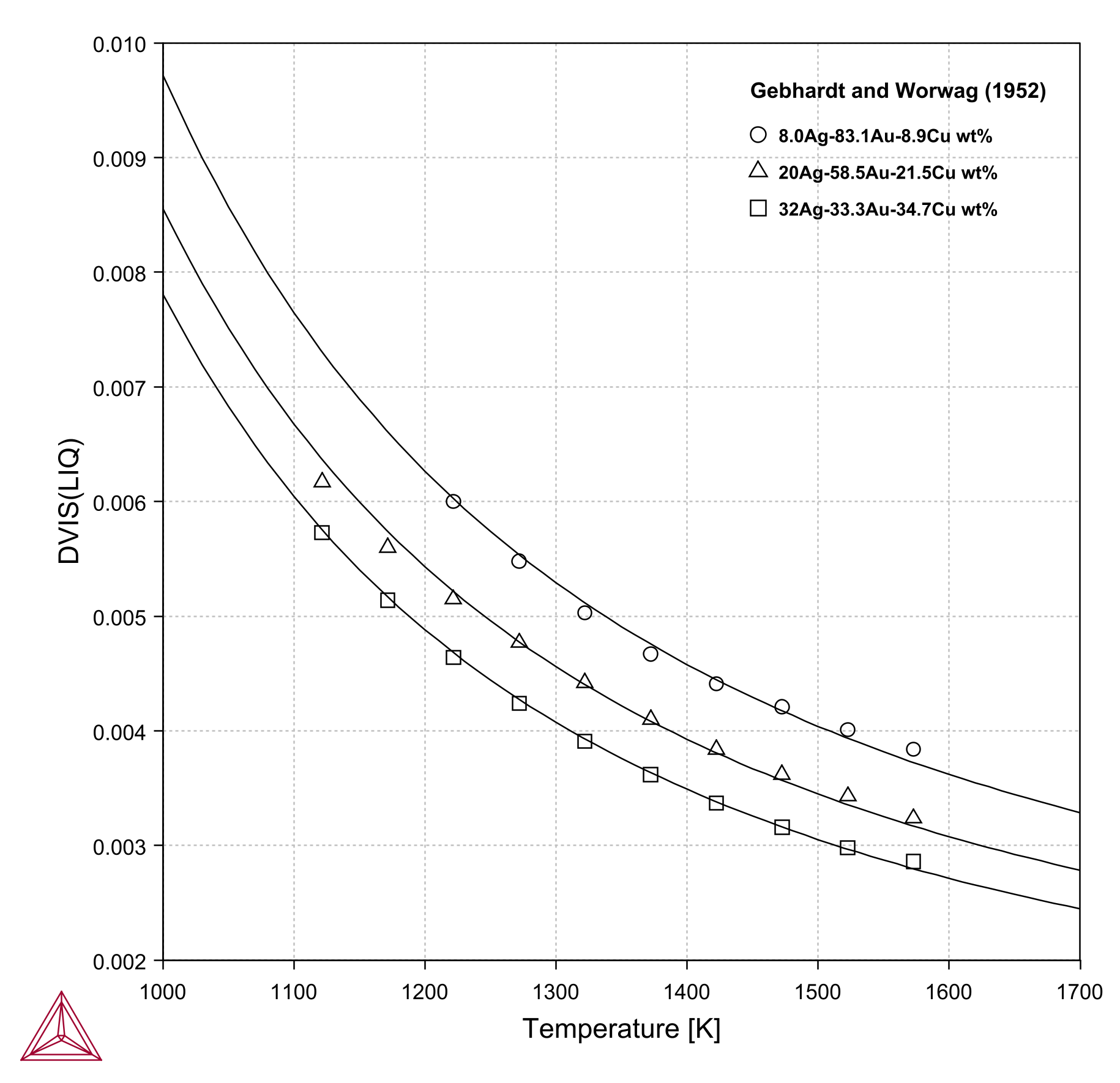

Calculated dynamic viscosity of liquid for three different Ag-Au-Cu alloys compared with experimental data

Figure 1: Calculated dynamic viscosity of liquid for three different Ag-Au-Cu alloys compared with experimental data [1952Geb].

Reference

[1952Geb] E. Gebhardt, G. Worwag, Die innere Reibung flüssiger Legierungen ans Silber-Kupfer-Gold. Zeitschrift für Met. (International J. Mater. Res.) 43, 106–108 (1952).
