TCSI1 Calculation Examples

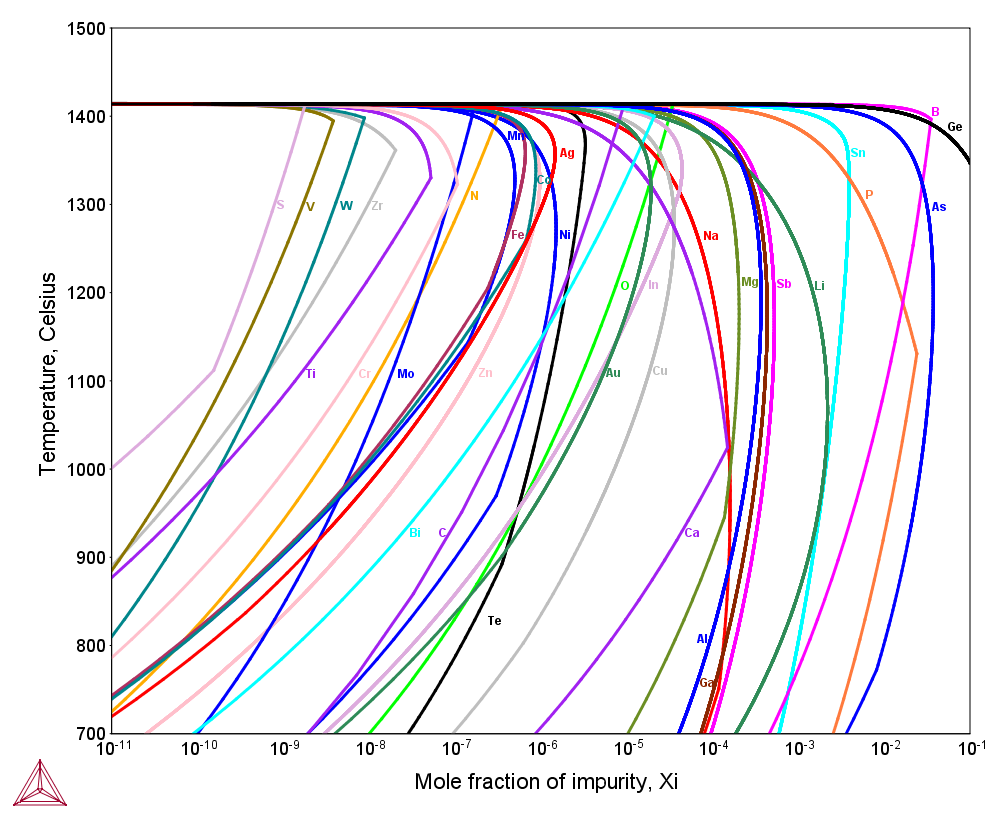

Calculated impurity solubility in Si-containing binaries using TCSI1.

Figure 1: Calculated impurity solubility in Si-containing binaries using TCSI1.

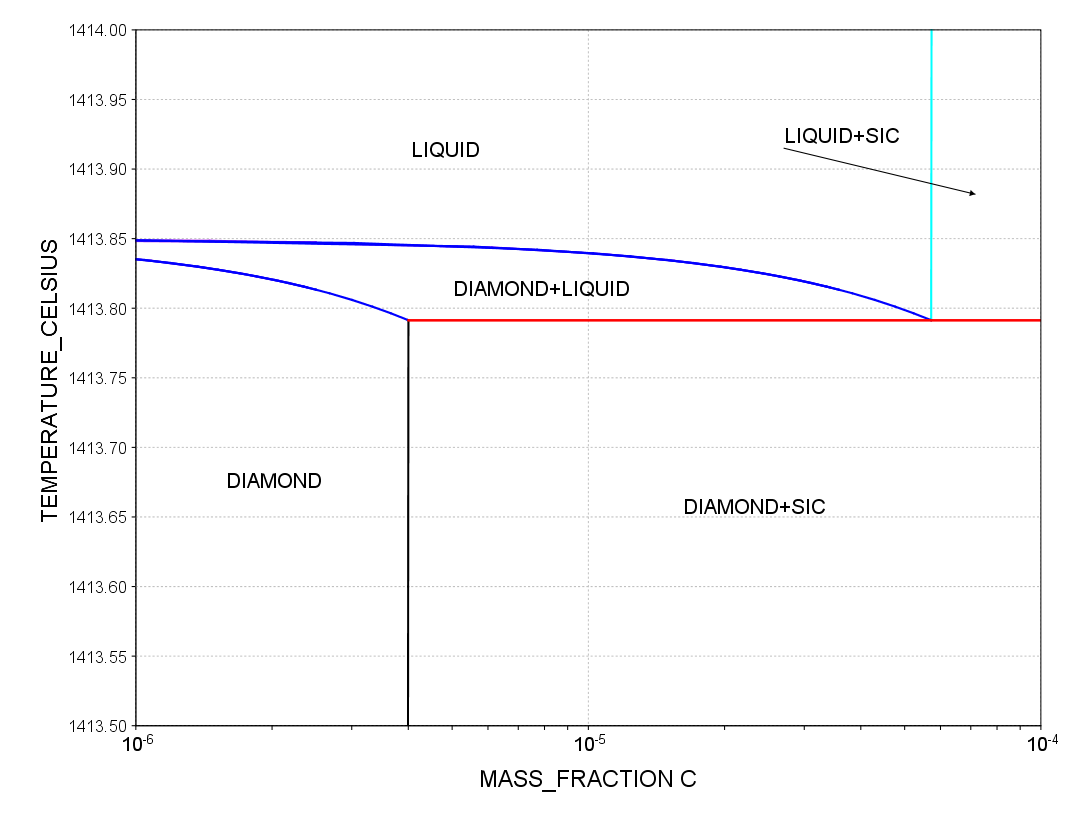

TCSI1 predicted segregation coefficient (~ 0.07) between C content in the diamond phase ( ~ 4 ppmw) and that in the liquid phase ( ~ 57 ppmw) at the eutectic of diamond+SiC in the Si-C binary.

Figure 2: TCSI1 predicted segregation coefficient (~ 0.07) between C content in the diamond phase ( ~ 4 ppmw) and that in the liquid phase ( ~ 57 ppmw) at the eutectic of diamond+SiC in the Si-C binary.
