PM_Ti_01: Martensite Temperatures for Ti-Zr

The Martensite Temperatures - Ti Property Model, available with the Property Model Calculator and the Titanium Model Library, calculates the martensite start temperature (Ms) and T-Zero temperatures for Ti-base alloys.

For more information about the Property Model, see About the Martensite Temperatures - Ti Property Model and Martensite Temperatures - Ti Property Model Settings.

This example uses the Martensite Temperatures - Ti Property Model with a simple Ti-Zr system to show the use of this model. A One Axis calculation is used to plot the Ms and T-Zero temperatures as a function of mole fraction of Zr with experimental data from [1952Du, 1965McM, and 1970Hua].

  • Folder: Property Models → Titanium
  • File name: PM_Ti_01_Martensite_Temperatures_Ti-Zr.tcu

To run calculations with the Titanium Models requires a valid maintenance license plus a license for the TCTI (version 6 and newer) database. For some Property Models, additional recommendations for the database version to use is indicated in its description. Also see our website to learn more about the Titanium Model Library.

Visualizations

Many of our Graphical Mode examples have video tutorials, which you can access in a variety of ways. When in Thermo‑Calc, from the menu select Help → Video Tutorials, or from the main My Project window, click Video Tutorials. Alternately, you can go to the website or our YouTube channel.

Open the example project file to review the node setup on the Project window and the associated settings on the Configuration window for each node. For some types of projects, you can also adjust settings on the Plot Renderer Configuration window to preview results before performing the simulation. Click Perform Tree to generate plots and tables to see the results on the Visualizations window.

When you run (Perform) this example, it takes a few minutes for the calculations to complete.

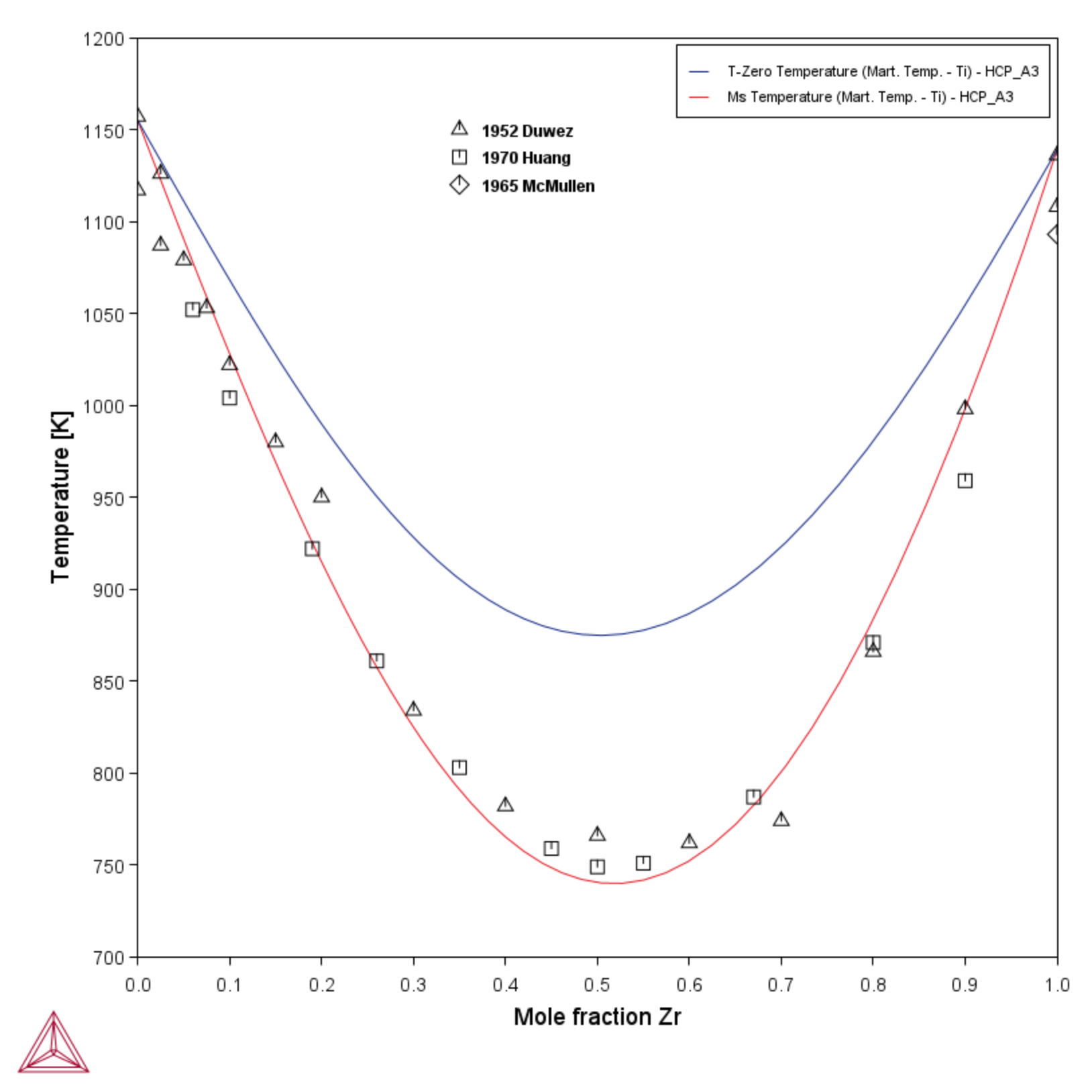

Figure 1: Ms and T-Zero temperatures as a function of mole fraction of Zr with experimental data from [1952Du, 1965McM, and 1970Hua].

References

[1952Du] P. Duwez, Allotropic transformation in titanium-zirconium alloys. J. Inst. Met. 80, 525–527 (1952).

[1965McM] A. G. McMullen, J. Gordon Parr, The Transformation in Zirconium-Niobium Alloys with an Appendix on Thermocouple Alloying with Zirconium. Can. Metall. Q. 4, 117–128 (1965).

[1970Hua] Y.C. Huang, S. Suzuki, H. Kaneko, T. Sato, Thermodynamics of the Ms points in titanium alloys, in: R.I. Jaffee, N.E. Promisel (Eds.) The Science, Technology and Application of Titanium, Pergamon Press, 1970, pp. 691-693.
