Event Log Window

The Event Log window is closed by default. Information about what Thermo‑Calc is processing or doing is in blue text, an error message is in red text, and caution/warning information is in yellow text.

Global Settings

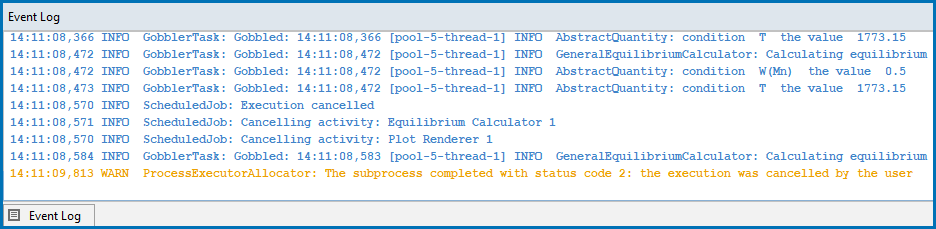

Event log example of messages in Graphical Mode window

  • To open the Event Log window: Click the Event Log window once to expand it or select it from the Window → Event Log menu. Double-clicking the window maximizes it.
  • To clear all messages in the window, right-click in the text area and select Clear.
  • To specify the level of detail in the Event Log, open the Options window:
    • Windows: Select Tools → Options menu icon Options.
    • Mac: Select Thermo-Calc <version> → Preferences or Settings or press <⌘> on the keyboard.

    then click the General tab and set the Log level slide bar to anything between Debug (most detailed) and Error (least detailed).
