Viscosity: Al-Cu and Cu-Al-Si

The viscosity thermophysical property data is included with the TCS Al-based Alloy Database (TCAL) as of version 7 (TCAL7).

Al-Cu

Al-Cu and Al-Si are assessed based on experimental data. For Al-Cu, the data from Schick [2012Sch] is used for fitting the parameters but data from Konstantinova [2009Kon] is also shown.

Calculated dynamic viscosity of Al-Cu at 1373 K along with experimental data

Figure 1: Calculated dynamic viscosity of Al-Cu at 1373 K along with experimental data from [2009Kon; 2012Sch].

Cu-Al-Si

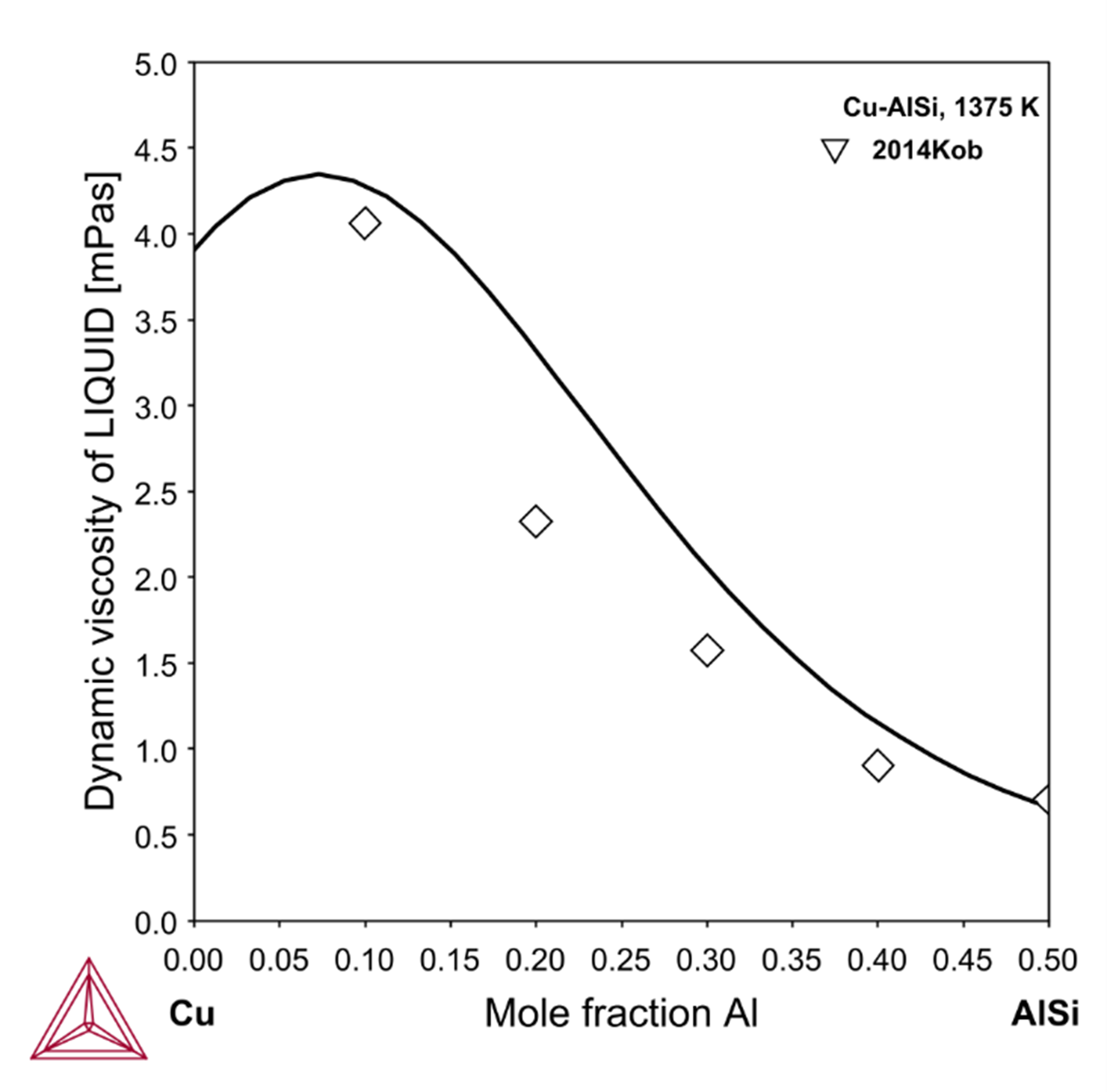

The following plot shows the calculated viscosity of Cu-Al-Si alloys as a function of composition at 1375 K.

Calculated dynamic viscosity of Cu-Al-Si alloys at 1375 K is compared with the experimental data

Figure 2: Calculated dynamic viscosity of Cu-Al-Si alloys at 1375 K is compared with the experimental data from [2014Kob].

References

[2009Kon] N. Y. Konstantinova, P. S. Popel’, D. A. Yagodin, The kinematic viscosity of liquid copper-aluminum alloys. High Temp. 47, 336–341 (2009).

 [2012Sch]  M. Schick, J. Brillo, I. Egry, B. Hallstedt, Viscosity of Al–Cu liquid alloys: measurement and thermodynamic description. J. Mater. Sci. 47, 8145–8152 (2012).

[2014Kob] H. Kobatake, J. Schmitz, J. Brillo, Density and viscosity of ternary Al–Cu–Si liquid alloys. J. Mater. Sci. 49, 3541–3549 (2014).
