Liquidus Projection

The liquidus projection of Cu-Ag-Sn ternary system are shown using the TCS Cu-based Alloys Database (TCCU). Comparison between the experimental data and the calculations are included.

When working in Thermo‑Calc with ternary diagrams you use either the Ternary Calculator (in Graphical Mode) or the Ternary module (in Console Mode). The fundamental calculation engine is the same but you access the settings in different ways.

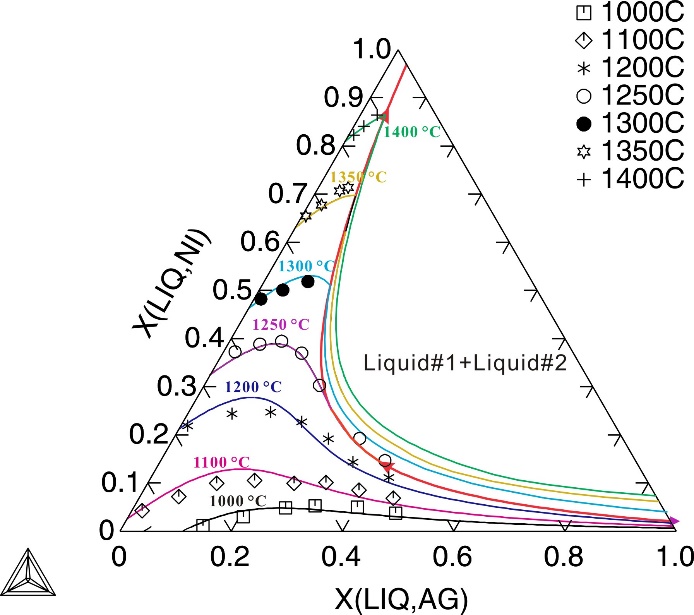

Calculated liquidus projection along with experimental data in the Cu-Ag-Ni system

Figure 1: Calculated liquidus projection along with experimental data [199Kub] in the Cu-Ag-Ni system [2008Liu].

References

[1998Kub] O. Kubaschewski, Silver-Copper-Nickel in Ternary Alloy Phase Diagrams, G. Petzow, G. Effenberg, Eds., pp. 596–604, (1998).

[2008Liu] X. J. Liu, F. Gao, C. P. Wang, K. Ishida, Thermodynamic Assessments of the Ag-Ni Binary and Ag-Cu-Ni Ternary Systems. J. Electron. Mater. 37, 210–217 (2008).
