Copper-containing Systems

The TCS Steel and Fe-alloys Database (TCFE) includes descriptions of several copper-containing systems such as Cu-Fe-X (X=Al, C, Co, Cr, Mn, Mo, N, Ni, P, S, Si, Sn, W, Zr).

Examples of Cu-Fe-Mn and Cu-Fe-Mo are shown below.

Cu-Fe-Mn

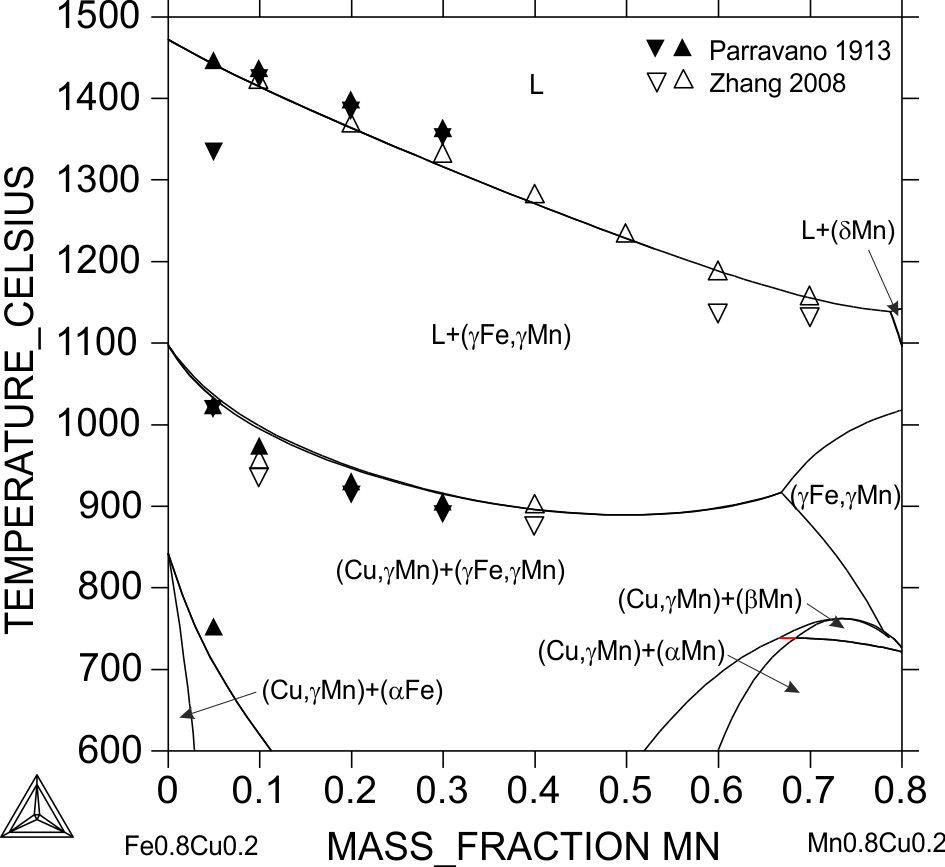

Calculated vertical section of the Cu-Fe-Mn system at 20 wt.% Cu

Figure 1: Calculated vertical sections of the Cu-Fe-Mn system at 20 wt.% Cu [200Zha].

Cu-Fe-Mo

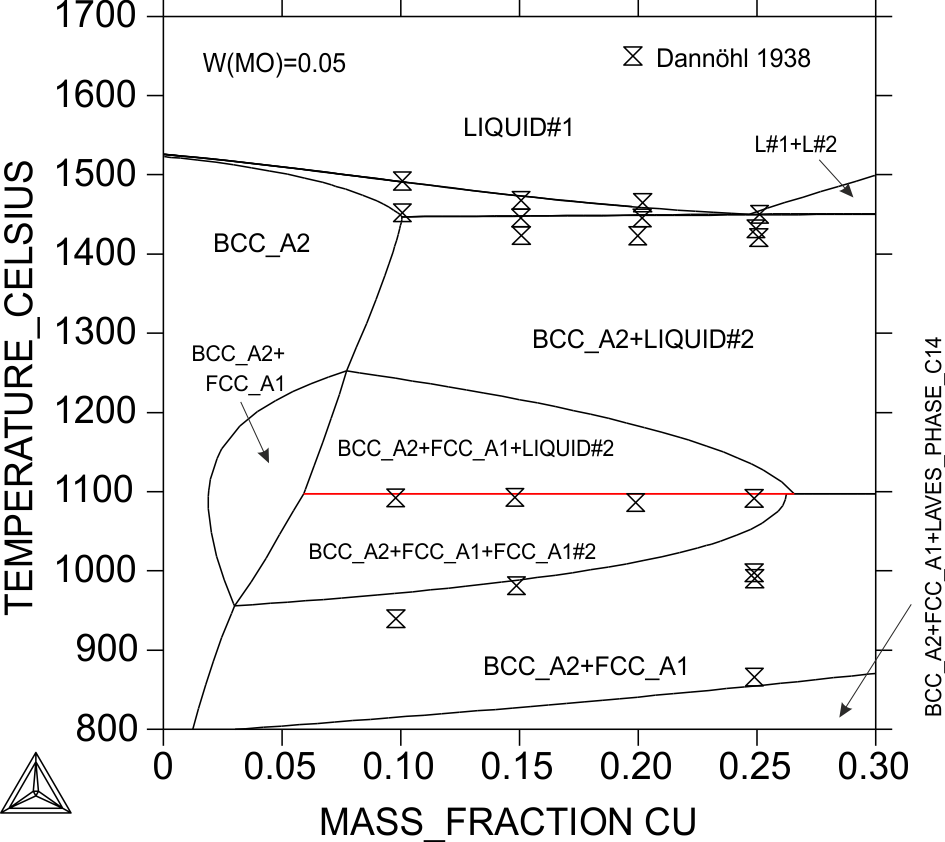

Calculated vertical section of the Cu-Fe-Mo system at 5 wt.% Mo along with the experimental data

Figure 2: Calculated vertical sections of the Cu-Fe-Mo system at 5 wt.% Mo along with the experimental data [2000Wan].

References

[2000Wan] C.-P. Wang, X.-J. Liu, I. Ohnuma, R. Kainuma, K. Ishida, and S.-M. Hao, Phase equilibria in the Cu-Fe-Mo and Cu-Fe-Nb systems, J. Phase Equilibria, 21, pp. 54–62 (2000).

[2008Zha] L. Zhang, Y. Du, Q. Chen, H. Xu, F. Zheng, C. Tang, H. Chen, Thermodynamic description of the C-Fe-Mn system with key experiments and its practical applications. Int. J. Mater. Res. 99, 1306–1318 (2008).
