Prediction of Metastable and Stable Phases

With so many binary and ternary systems assessed, many multicomponent alloys can be accurately described with the TCS Ni-based Superalloys Database (TCNI).

Ni-18Cr-18Fe-3Mo-0.5Al-1Ti-5.3Nb-0.02C Alloy

This example calculates the metastable phase equilibria in a 718-type alloy when all phases are suspended except FCC_L12 and BCT_D022 phases.

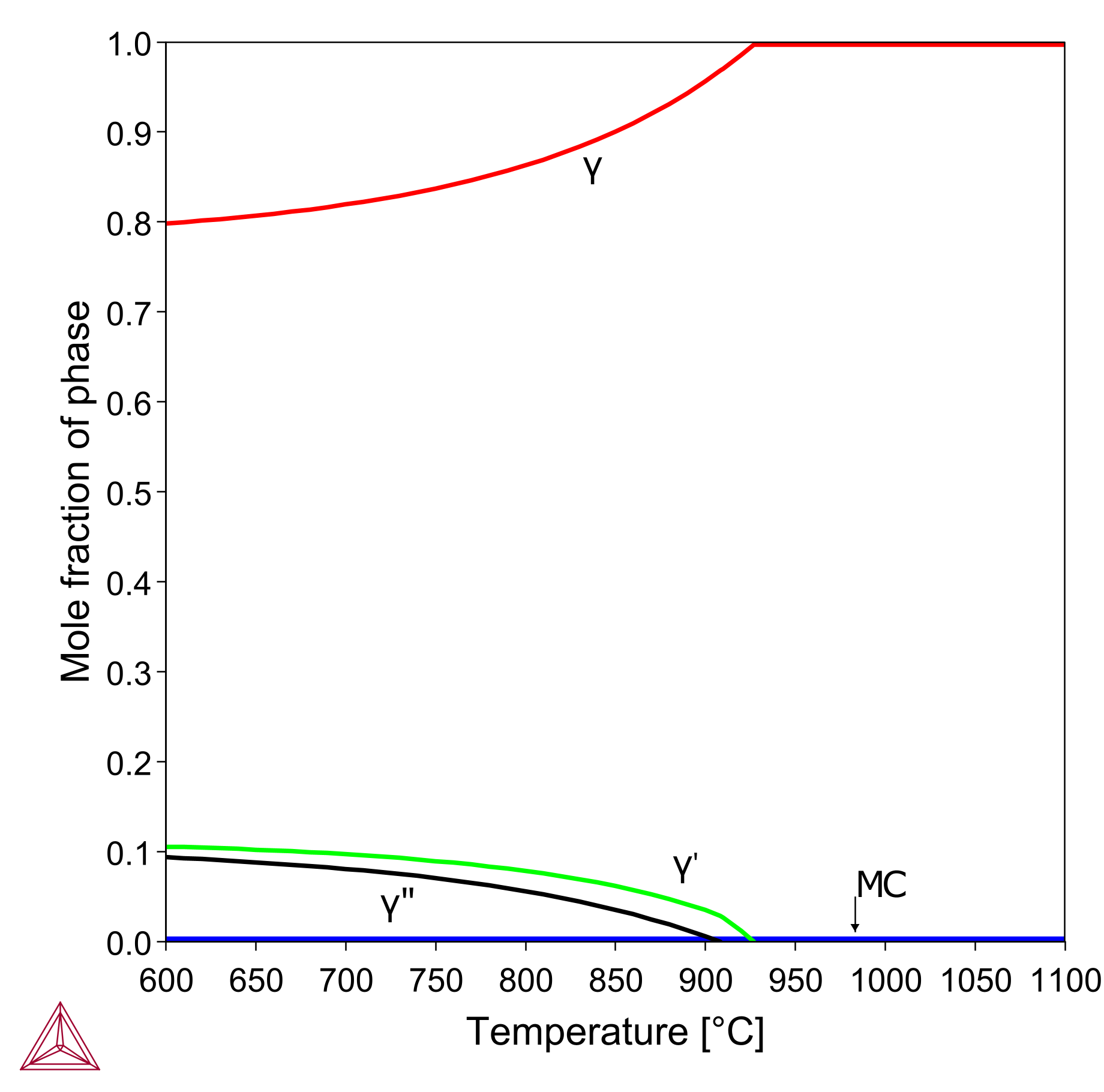

Predicted amount of phases (metastable calculation) at varying temperatures for a Ni-18Cr-18Fe-3Mo-0.5Al-1Ti-5.3Nb-0.02C (wt. %) alloy

Figure 1: Predicted amount of phases (metastable calculation) at varying temperatures for a Ni-18Cr-18Fe-3Mo-0.5Al-1Ti-5.3Nb-0.02C (wt. %) alloy.

Ni-10Cr-5Al

This example calculates the formation of oxides and sulfides for the Ni-10Cr-5Al alloy in the presence of SO2 gas at 600° Celsius.

Calculated phase stability diagram of Ni-10Cr-5Al in the presence of SO2 gas at 600 °C.

Figure 2: Calculated phase stability diagram of Ni-10Cr-5Al in the presence of SO2 gas at 600 °C.
