Binary Phase Diagrams

Every binary system in the TCS Ni-based Superalloys Database (TCNI) is assessed to accurately describe experimental phase diagram data available in the literature.

The CALPHAD Method and the Thermo‑Calc Databases. Also visit the video tutorials on our website or our YouTube playlist.

When working in Thermo‑Calc with binary diagrams you use either the Binary Calculator (in Graphical Mode) or the Binary module (in Console Mode). The fundamental calculation engine is the same but you access the settings in different ways.

Al-Fe

Phase diagram calculated for the Al-Fe system.

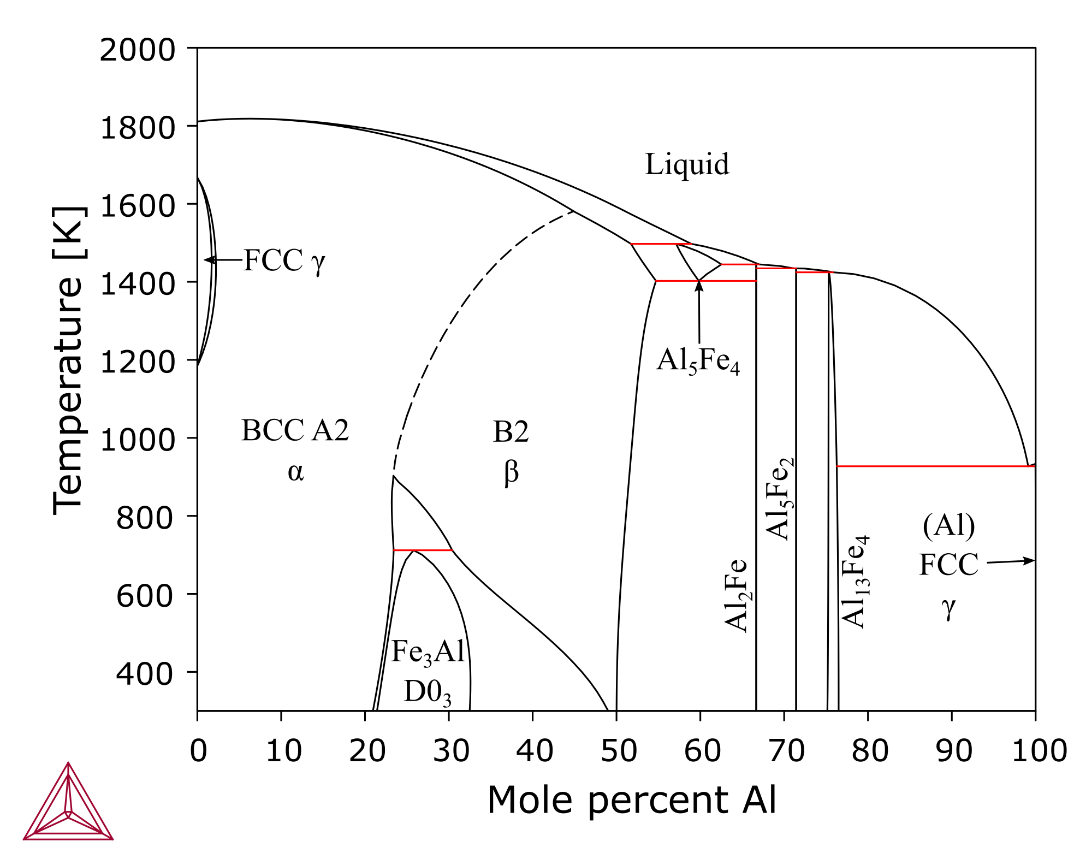

Figure 1: Phase diagram calculated for the Al-Fe system [1993Sei].

Al-Ni

Phase diagram calculated for the Al-Ni system.

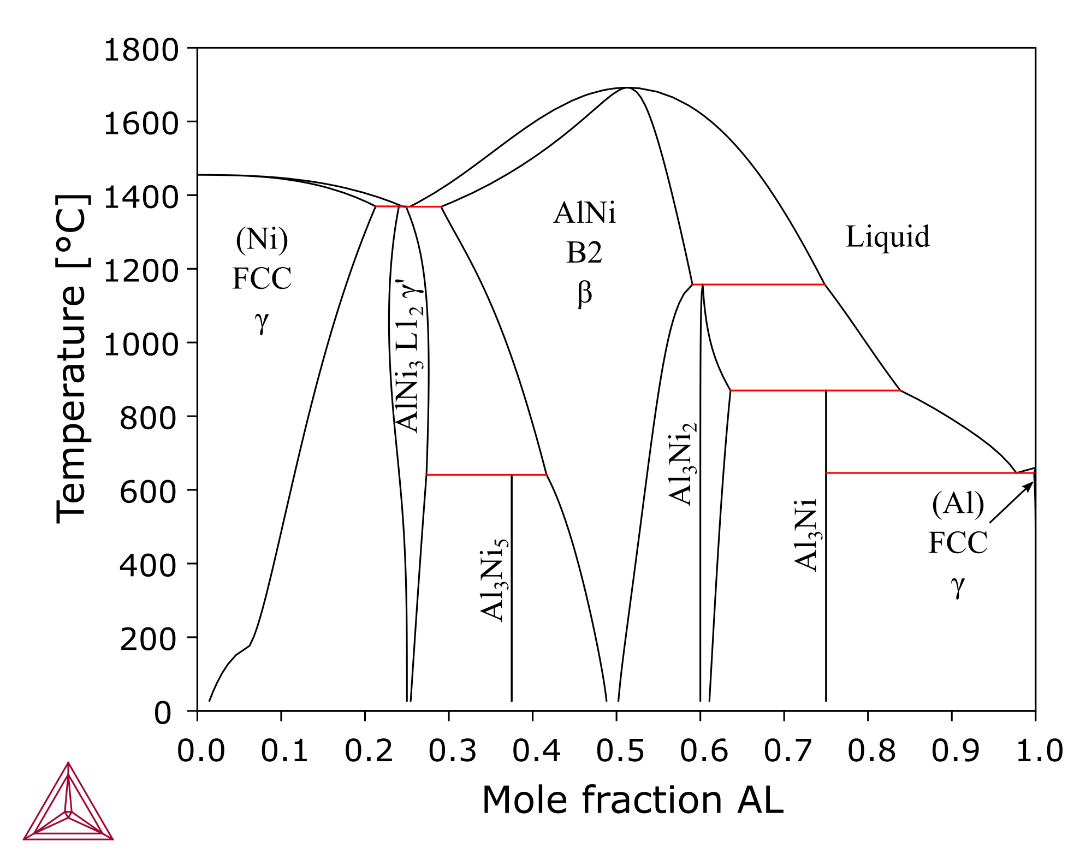

Figure 2: Phase diagram calculated for the Al-Ni system [1997Ans].

References

[1993Sei] E. M. Seiersten, Sintef report STF28F93051, (1993).

[1997Ans] I. Ansara, N. Dupin, H. L. Lukas, B. Sundman, Thermodynamic assessment of the Al-Ni system. J. Alloys Compd. 247, 20–30 (1997).
