Oxygen Diffusion in Zircaloy-4

Corvalan-Moya et al. [2010Cor] measured the oxygen diffusion profiles in low-Sn Zircaloy-4 at different temperatures. Diffusion Module (DICTRA) simulations were made to compare with the measured data.

The plot shows the calculation and comparison result of oxygen diffusion in BCC Zircaloy-4 at 1523 K for 309 s.

Read more about the Diffusion Module (DICTRA) on our website. There is also a Getting Started with the Diffusion Module (DICTRA) page available. If you are in Thermo‑Calc, press F1 to search the help to learn about the available settings included with the Add-on Module.

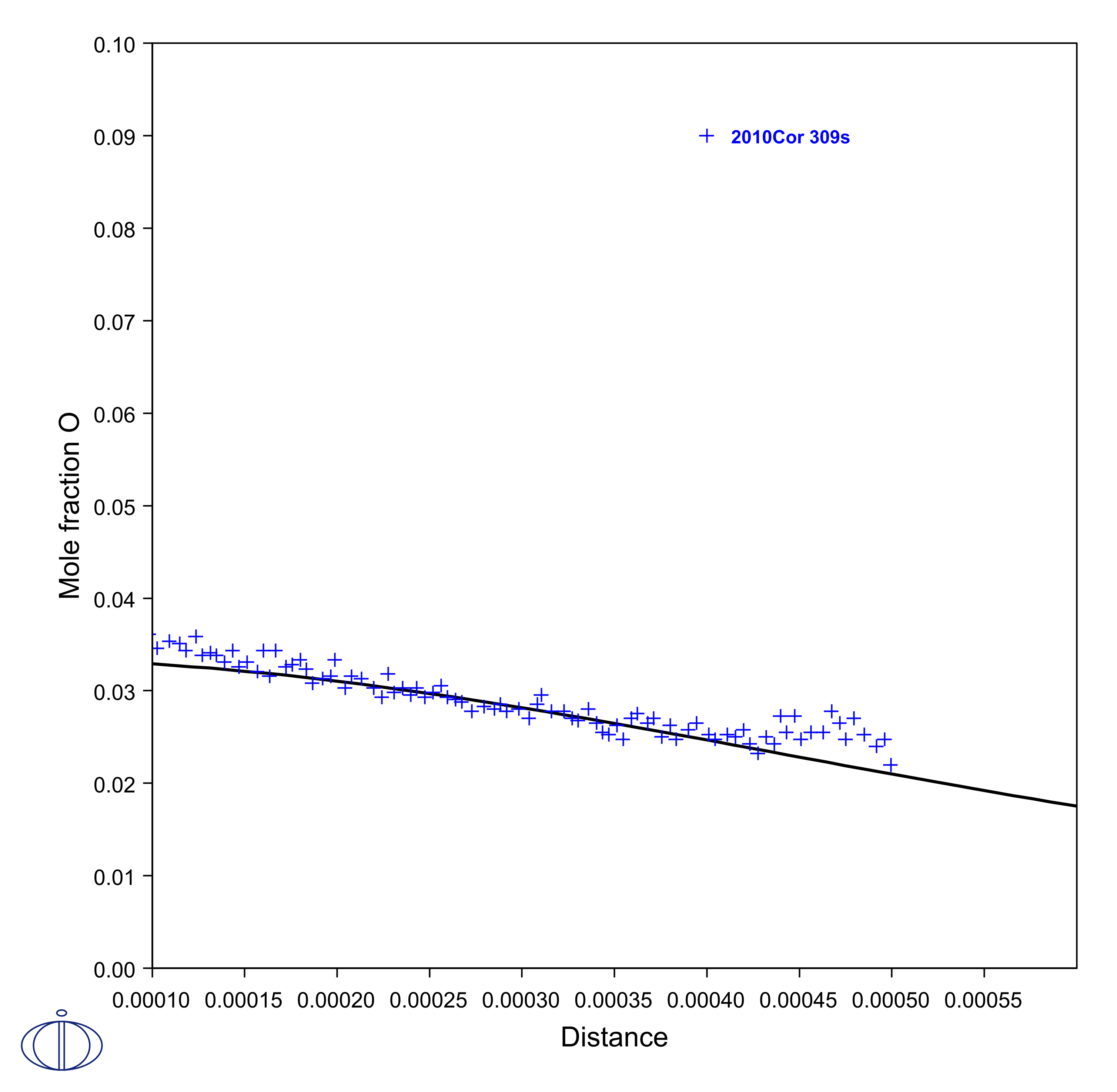

Calculated O diffusion profiles in Zricaloy-4 at 1523 K compared with experimental data.

Figure 1: Calculated O diffusion profiles in Zircaloy-4 at 1523 K compared with experimental data.

Reference

[2010Cor] C. Corvalán-Moya, C. Desgranges, C. Toffolon-Masclet, C. Servant, J. C. Brachet, Numerical modeling of oxygen diffusion in the wall thickness of Low-Tin Zircaloy-4 fuel cladding tube during high temperature (1100–1250°C) steam oxidation. J. Nucl. Mater. 400, 196–204 (2010).
