Setting Up the Single Phase Simulation

For the single phase example, you can open the example project file included with your installation to first see how it is set up:

  1. Open Thermo‑Calc.
  2. There are different ways to access the examples.
    • From the main menu, select File → or Help → Examples Files. The Graphical Mode folder opens by default.
    • Click the My Project node Icon My Project node and on the Configuration window under Getting Started, click Example Files menu icon Example Files.
  3. Click to open the Diffusion Module - DICTRA folder and locate the D_01_Diffusion_Single_Phase.tcu file. Double-click to open it.
  4. The project opens in Thermo‑Calc and adds this tree structure:

    Example of tree structure

  5. Click the top Project node (renamed to Diffusion Single Phase). At the bottom of the Configuration window click Perform Tree. You can also right-click the node and select Perform Now.

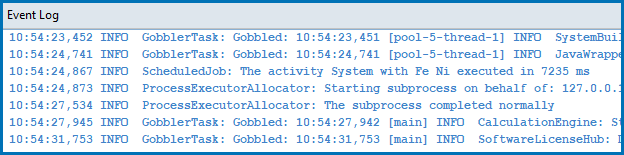

    The Event Log shows the progress of the calculations:

    The Event Log shows the progress of the calculations

    When completed, the results are plotted in the Visualizations window as shown below.

Visualizations

There is a variety of information shown in the Visualizations window that can be viewed during configuration and after performing the calculation.

  • Composition Profiles and Thermal Profile: When setting up a calculator on a Configuration window you can preview the profile and adjust settings as needed. When you click a calculator node in the Project window, the matching name of the node is on the tab(s) displayed in the Visualizations window.
  • Plot or Table results: After completing the set up and performing the calculation, to view the matching name of the node on tab(s) in the Visualizations window, either click a Plot Renderer or Table Renderer node in the Project window or click the tabs individually in the Visualizations window.

Visualizations window example of the tabs

Composition profile for the Diffusion Calculator example D_01

During set up of the calculation, you can preview the Composition Profile (shown) or Thermal Profile. Click the tab(s) in the Visualizations window to switch between these previews and adjust settings on the Diffusion Calculator Configuration window. For an Isothermal Thermal Profile this shows the constant temperature as entered.

Composition of Ni vs Distance

After performing the calculation, you can view the final Plot Renderer result on the Composition of Ni vs Distance tab, which shows the initial and final Ni profile. In this example, the Plot Renderer is renamed and this matches the tab name in the Visualizations window.

For the rest of the exercise, you will learn how to build this example step-by-step.
