Deviation from Local Equilibrium Examples

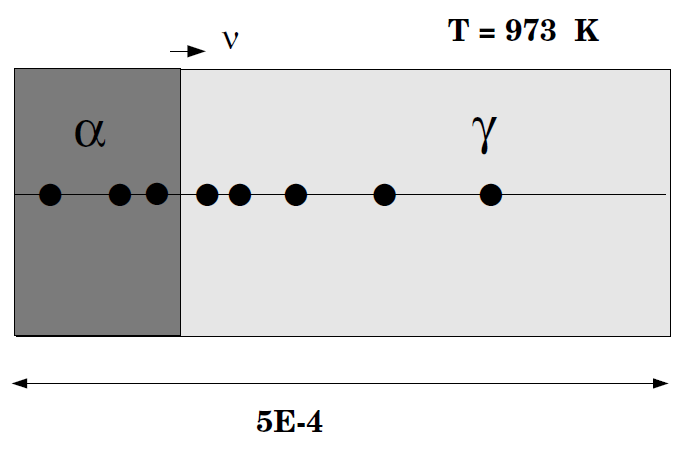

Ferrite/austenite (α/γ) diffusion couple with interface mobility

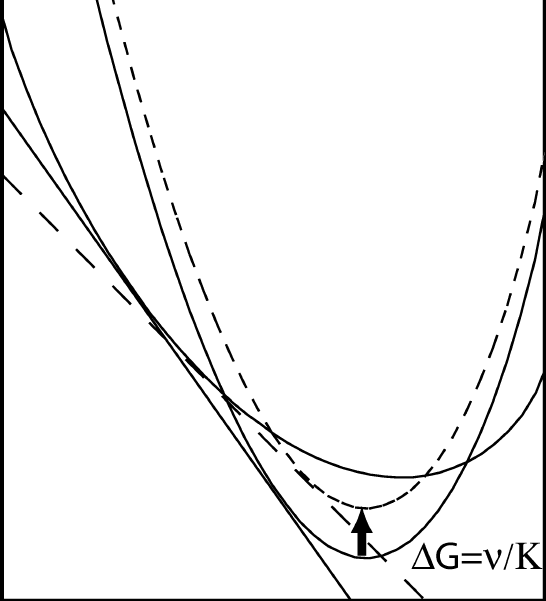

This example calculates the growth of ferrite (α) into austenite (γ) with a limited interface mobility. This is done by adding a Gibbs-energy contribution to the ferrite using the SET-SURFACE-ENERGY command.

Ferrite/austenite (α/γ) para-equilibrium in an Fe-Ni-C alloy

This example calculates the growth of ferrite (α) into austenite (γ) in an Fe-2.02%Ni-0.0885%C alloy using the para-equilibrium model. The results are compared with experimental information from Hutchinson, Fuchsmann, and Brechet [2004Fuc].

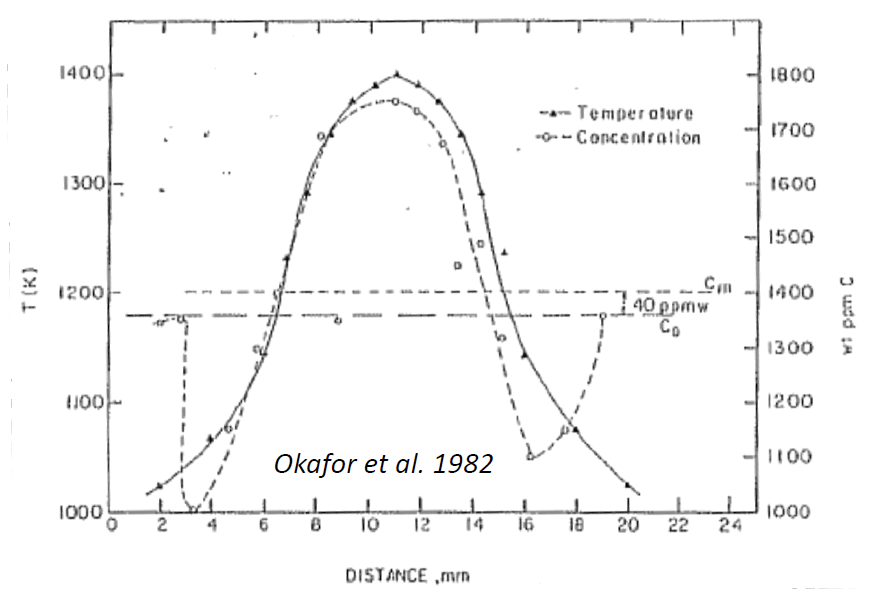

Diffusion induced by a temperature gradient (thermomigration)

This calculation shows how a temperature gradient induces diffusion.

[2004Fuc] C. R. Hutchinson, A. Fuchsmann, Y. Brechet, The diffusional formation of ferrite from austenite in Fe-C-Ni alloys. Metall. Mater. Trans. A 35, 1211–1221 (2004).
