Diffusion in Dispersed Systems Examples

Carburization of Ni-25%Cr alloy: Dispersed system model

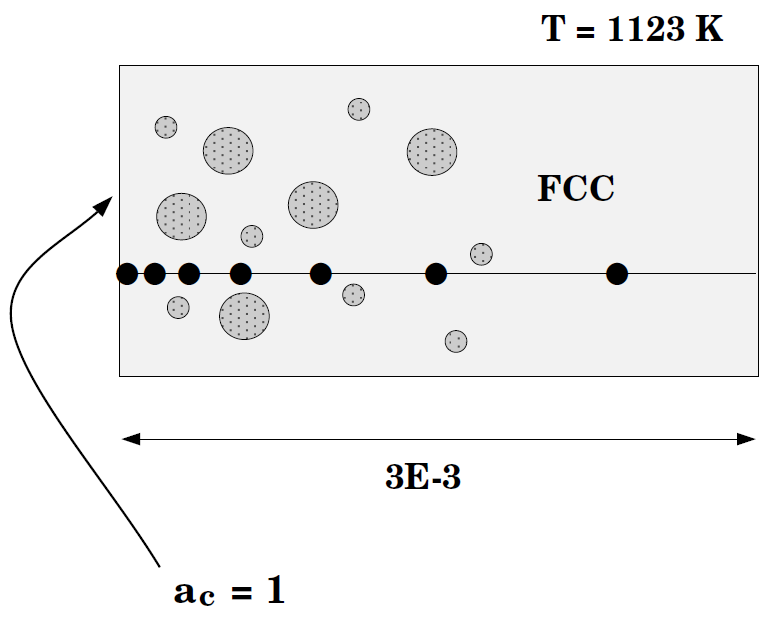

This example is about carburization of a Ni-25Cr alloy. In this case the M3C2 and M7C3 carbides are entered as spheroid phases in a FCC matrix. This simulation can be run with either the DISPERSED SYSTEM MODEL or the HOMOGENIZATION MODEL. In this example the DISPERSED SYSTEM MODEL is used. This case is from [1994Eng].

Carburization of Ni-25%Cr alloy: Homogenization model

This example is about carburization of a Ni-25Cr alloy. In this case the M3C2 and M7C3 carbides are entered as spheroid phases in a FCC matrix. It is similar to exd1a except the default HOMOGENIZATION MODEL is used and then ENTER_HOMOGENIZATION_FUNCTION should be used instead of ENTER_LABYRINTH_FUNCTION. This case is from [1994Eng].

A modified version of this example is also available in Graphical Mode as example D_07. For Graphical Mode you do not need a Diffusion Module (DICTRA) license. You can open the example from Thermo‑Calc when in Graphical Mode (File →Examples Files → Diffusion Module).

Diffusion couple of Fe-Cr-Ni alloys: Dispersed system model

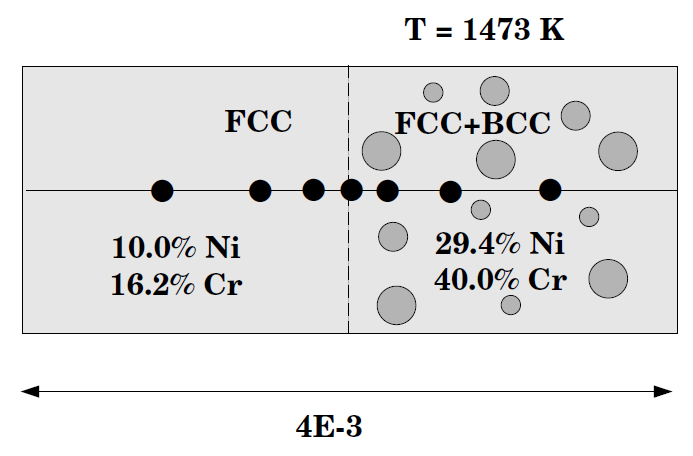

This example calculates the interdiffusion in a diffusion couple between a two-phase (FCC+BCC) and a single-phase (FCC) Fe-Ni-Cr alloy. Initially it has a step profile. This simulation can be run with either the DISPERSED SYSTEM MODEL or the HOMOGENIZATION MODEL. In this example the DISPERSED SYSTEM MODEL is used. This case is from [1995Eng].

Diffusion couple of Fe-Cr-Ni alloys: Interdiffusion and the Homogenization Model

This example calculates the interdiffusion in a diffusion couple between a two-phase (FCC+BCC) and a single-phase (FCC) Fe-Ni-Cr alloy. Initially it has a step profile. It is similar to exd2a except the default HOMOGENIZATION MODEL is used and then ENTER_HOMOGENIZATION_FUNCTION is used instead of ENTER_LABYRINTH_FUNCTION. This case is from [1995Eng].

Diffusion couple of Fe-Cr-Ni alloys: Homogenization model

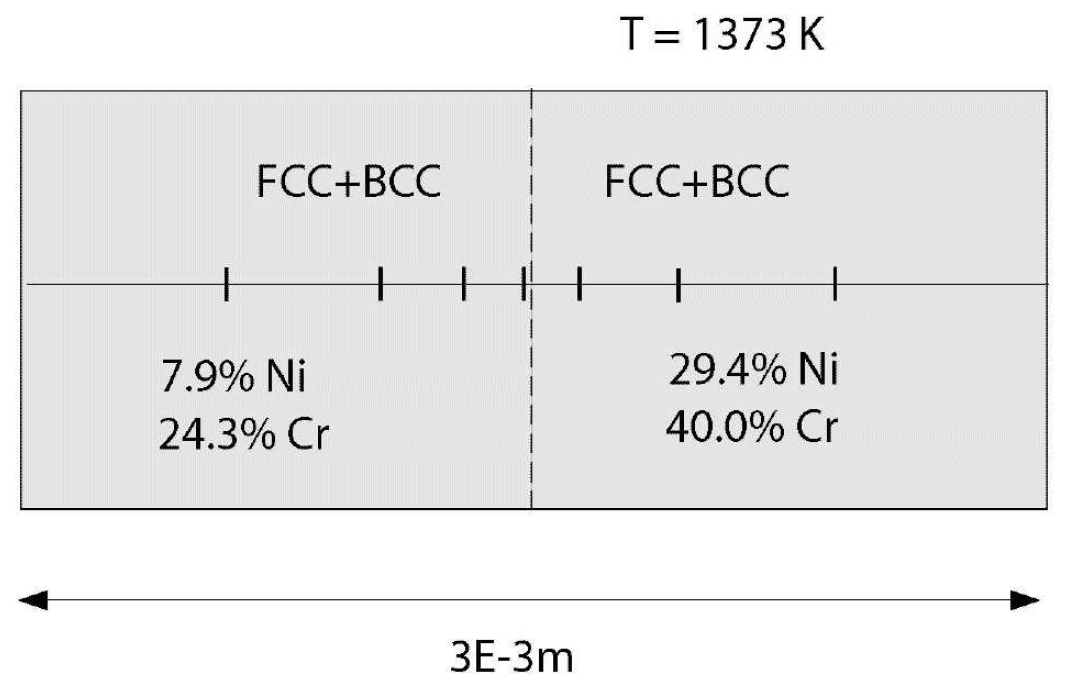

This example uses the homogenization model. It is taken from [2006Lar].  Experimental data is from[1995Eng].

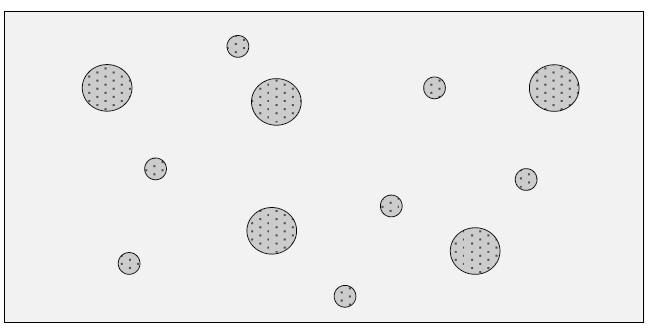

The homogenization model can be used for multiphase simulations like the dispersed system model, but unlike the dispersed system model there is no need to have a single continuous matrix phase and, furthermore, there is no need to limit the size of time-steps. The set-up is performed in the same manner as for the dispersed system model, which means that a certain phase is entered as the matrix phase and the other phases are entered as spheroidal, but the choice of matrix phase does not affect the simulation.

[1994Eng] A. Engström, L. Höglund, J. Ågren, Computer simulation of diffusion in multiphase systems. Metall. Mater. Trans. A 25, 1127–1134 (1994).

[1995Eng] A. Engström, L. Höglund, J. Ågren, Computer simulation of diffusion in multiphase systems. Metall. Mater. Trans. A 25, 1127–1134 (1994).

[2006Lar] H. Larsson, A. Engström, A homogenization approach to diffusion simulations applied to α+γ Fe–Cr–Ni diffusion couples. Acta Mater. 54, 2431–2439 (2006).
