PM_Ni_03: Critical Temperatures of Alloy 718

The example uses the Property Model Calculator with the Solvus for Ordered Phase-Ni Model.

Property Model Calculator and About the Solvus for Ordered Phase Property Model

In this example, the respective solvus temperatures of the Delta and Gamma double-prime phases are calculated.

For the Delta phase, the Subset of phases is set to All phases but the result varies very little with the selected subset (provided that the Delta phase is included). For the Gamma double-prime phase, which is a metastable phase, it is necessary to use the Typical Ni-base superalloy phase subset.

The resulting solvus temperatures are compared with experimental data from [2010Fra].

  • Folder: Property Models → Nickel
  • File name: PM_Ni_03_Critical_Temperatures_Alloy_718.tcu

To run calculations with the Nickel Models requires a valid maintenance license plus licenses for both the TCNI (version 11 and newer) and MOBNI (version 5 and newer) databases. For some Property Models, additional recommendations for the database version to use is indicated in its description. Also see our website to learn more about the Nickel Model Library.

Visualizations

Many of our Graphical Mode examples have video tutorials, which you can access in a variety of ways. When in Thermo‑Calc, from the menu select Help → Video Tutorials, or from the main My Project window, click Video Tutorials. Alternately, you can go to the website or our YouTube channel.

Open the example project file to review the node setup on the Project window and the associated settings on the Configuration window for each node. For some types of projects, you can also adjust settings on the Plot Renderer Configuration window to preview results before performing the simulation. Click Perform Tree to generate plots and tables to see the results on the Visualizations window.

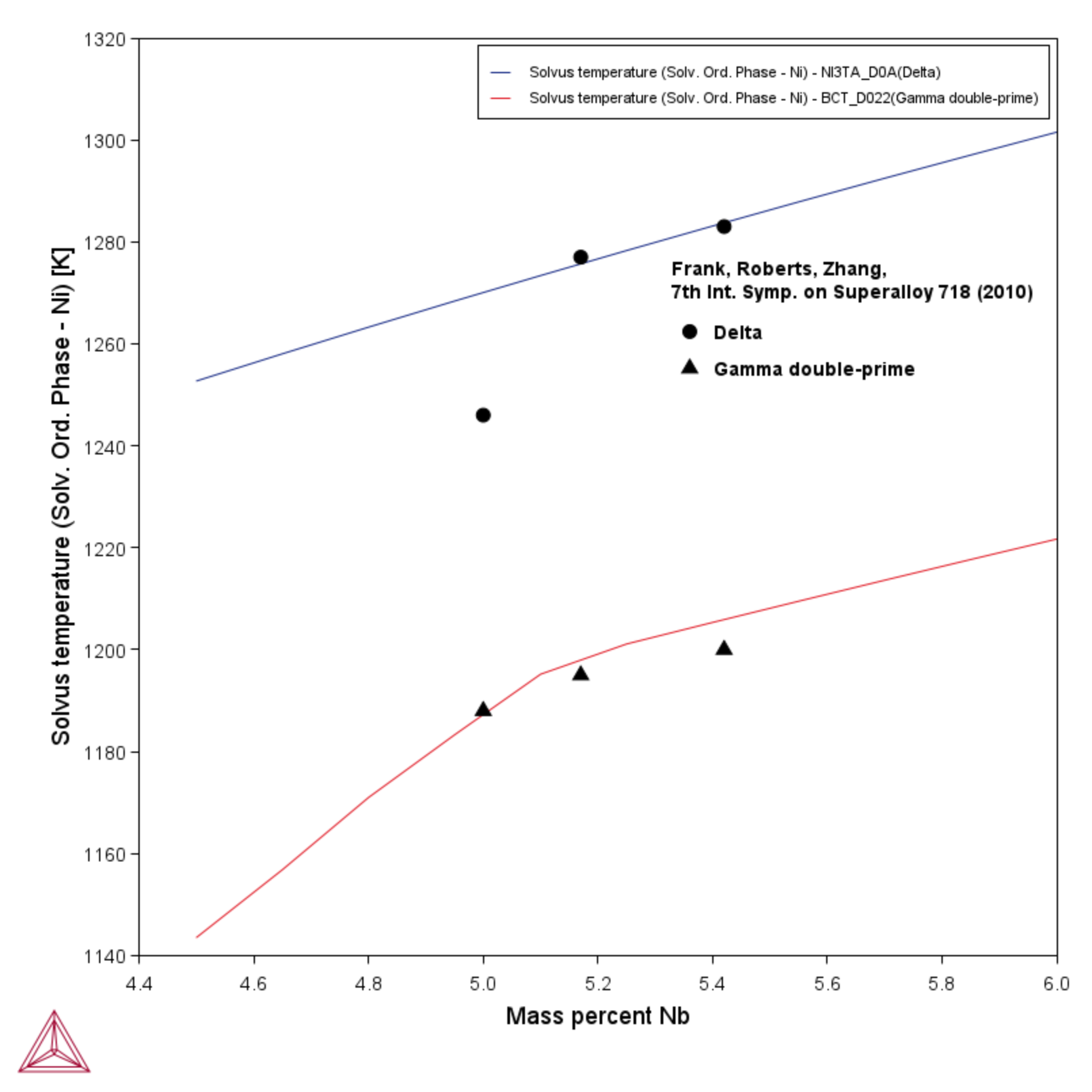

Solvus temperatures for NI3TA_D0A (Delta) and BCT_D022 (Gamma double-prime) compared to experimental data

Figure 1: Solvus temperatures for NI3TA_D0A (Delta) and BCT_D022 (Gamma double-prime) compared to experimental data [2010Fra].

Reference

[2010Fra] R. B. Frank, C. G. Roberts, J. Zhang, Effect of Nickel Content on Delta Solvus Temperature and Mechanical Properties of Alloy 718, in 7th International Symposium on Superalloy 718 and Derivatives (2010) (TMS (The Minerals, Metals & Materials Society), 2010, pp. 725–736.
