Binary Systems

For the TCS Ti/TiAl-based Alloys Database (TCTI), each assessed binary system is modeled to accurately describe experimental phase diagram data available in the literature.

These examples are calculated binary phase diagrams, which can be created in Thermo‑Calc using the BINARY module in Console Mode and the Binary Calculator in Graphical Mode.

Ti-Pd

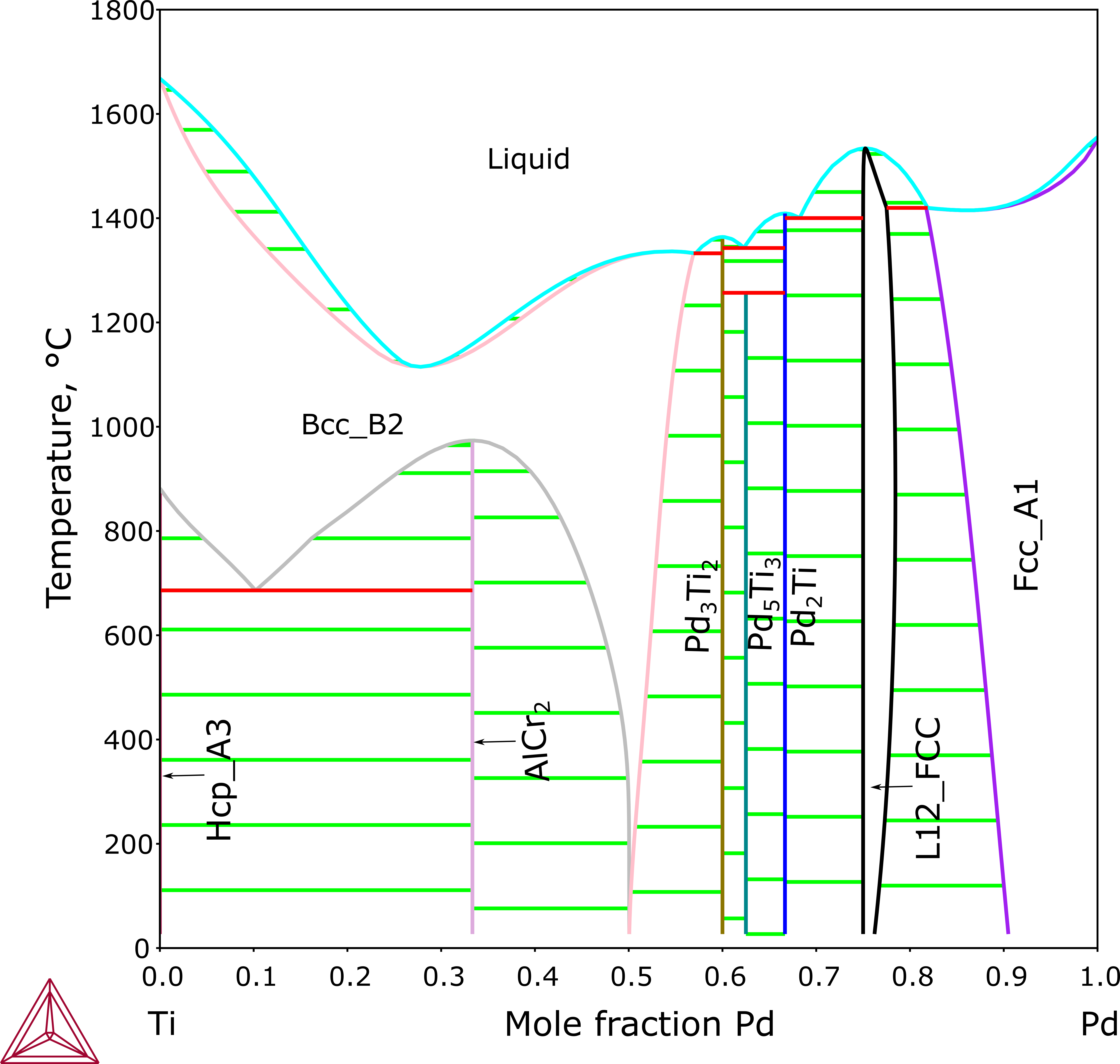

Binary Ti-Pd phase diagram

Figure 1: Calculated Ti-Pd phase diagram.

Ti-Pt

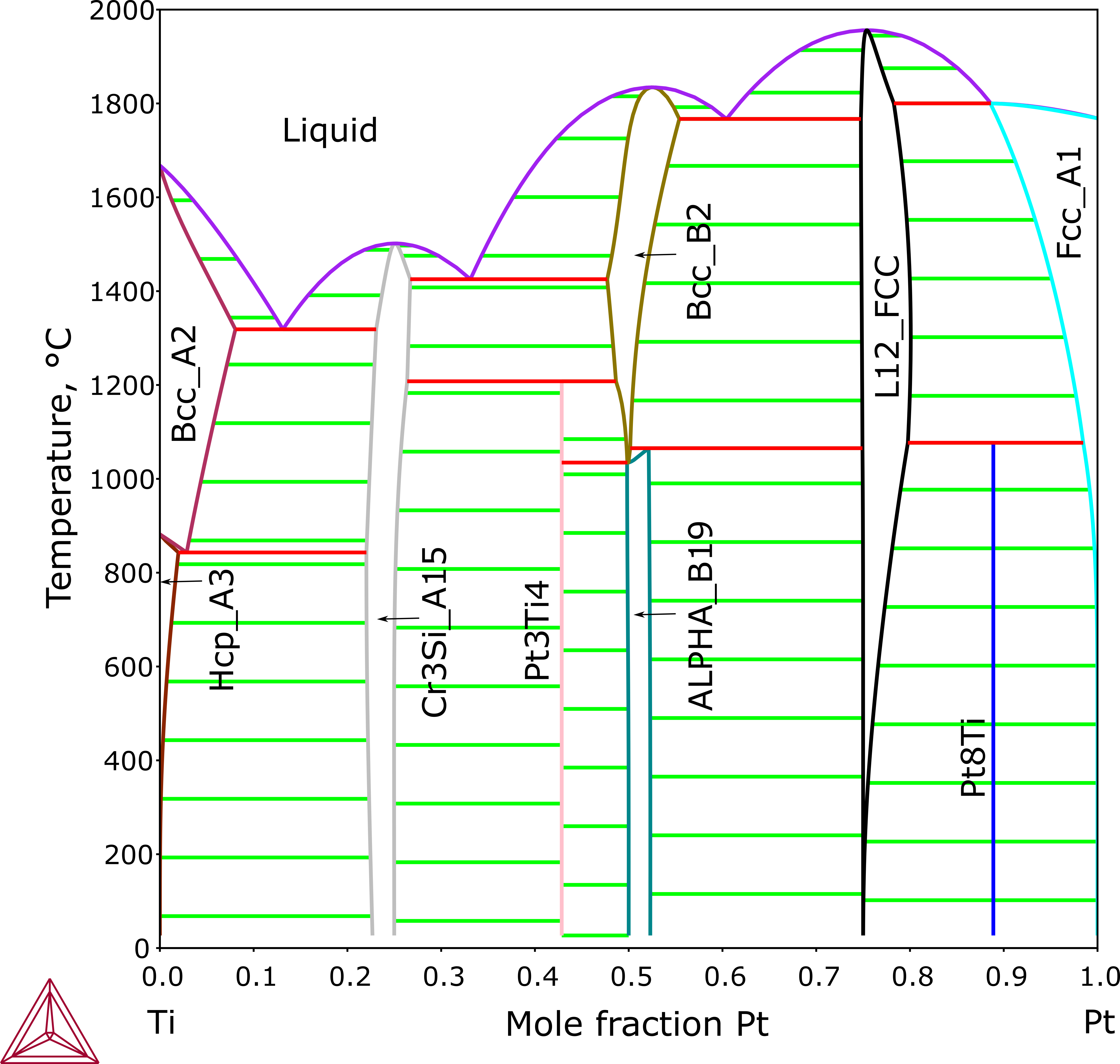

Binary Ti-Pt phase diagram

Figure 2: Calculated Ti-Pt phase diagram.
