Ca-Fe-Mg-O-P-Si

The TCS Metal Oxide Solutions Database (TCOX) can be used to estimate the phosphorus solubility in liquid iron which is in equilibrium with steelmaking slags. The figure below compares the phosphorus solubility estimated based on the database and the corresponding experimental data in the Ca-Fe-Mg-O-P-Si system.

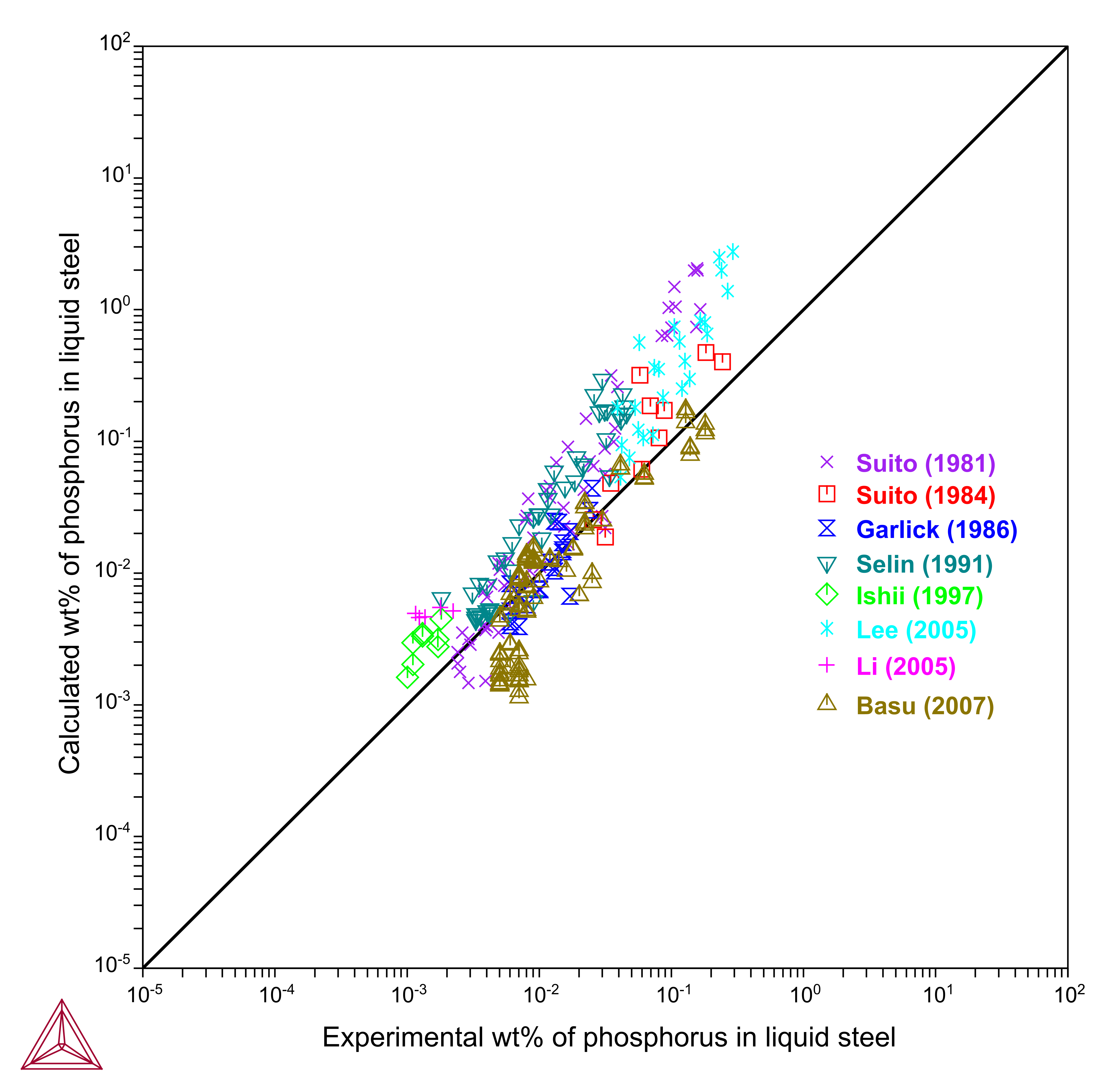

Comparison of experimental and calculated phosphorus solubility in liquid iron in equilibrium with slag in the Ca-Fe-Mg-O-P-Si system

Figure 1: Comparison of experimental and calculated phosphorus solubility in liquid iron in equilibrium with slag in the Ca-Fe-Mg-O-P-Si system.
