Appending Project Files

You can only have one project file open at a time in any one instance of Thermo‑Calc. However, you can append the nodes from additional project files to the topmost My Project node in the Project window.

To append a project file into the Project tree:

  1. Chose an option:
    • From the main menu, select File → Append Project File button Append Project .
    • Press <Ctrl+Shift+O> (Windows) or < ⇧⌘O> (macOS).
  2. Then in the Append file window, navigate to the project file and click Open.
  3. The nodes are appended to the top node. Drag the nodes to separate and arrange within the Project window.

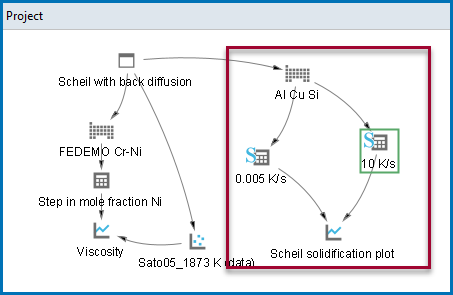

    An example of an appended project added to the tree
