Laves Phase

The TCS Steel and Fe-alloys Database (TCFE) contains an extensive description of the Laves phase. This description shows satisfying accuracy of the predictions compared to experimental information [2004Sah; 2010Pan]. Below compares the amount of different phases as a function of temperature two commercial steels.

316L Alloy

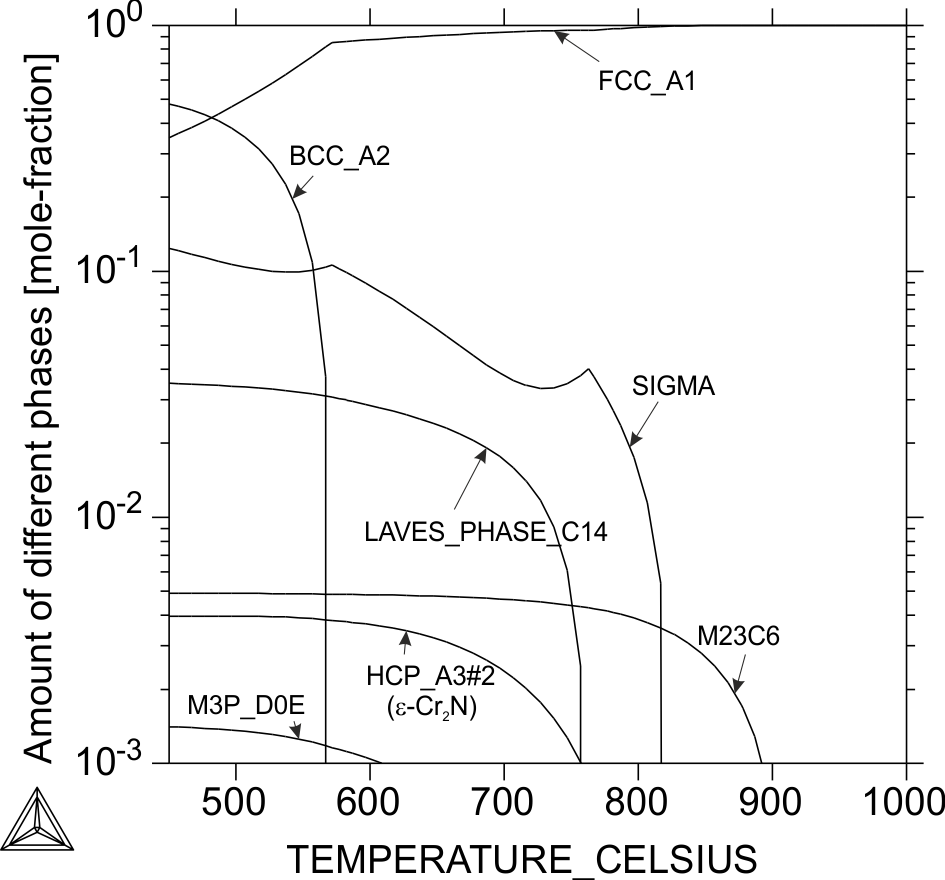

Amount of different phases as a function of temperature in 316L steel

Figure 1: Amount of different phases as a function of temperature in 316L alloy [2004Sah].

P91 Alloy

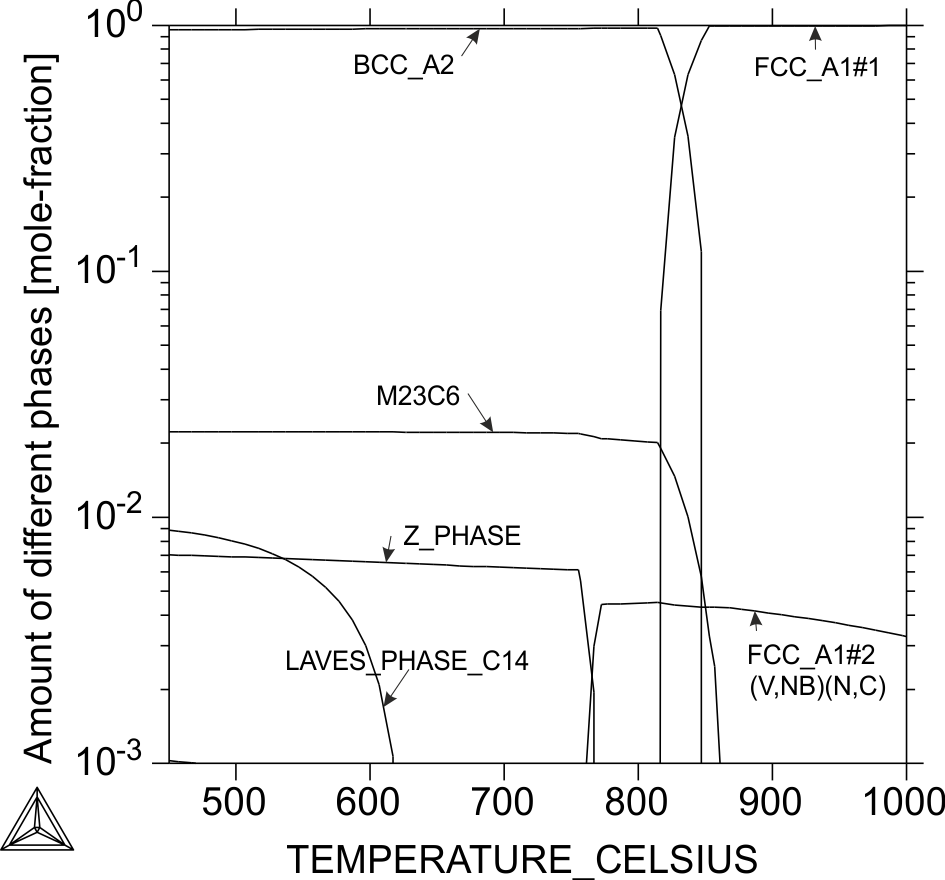

Amount of different phases as a function of temperature in P91 steel

Figure 2: Amount of different phases as a function of temperature in P91 alloy [2010Pan].

References

[2004Sah] H. Sahlaoui, K. Makhlouf, H. Sidhom, J. Philibert, Effects of ageing conditions on the precipitates evolution, chromium depletion and intergranular corrosion susceptibility of AISI 316L: experimental and modeling results, Mater. Sci. Eng. A. 372, 98–108 (2004).

[2010Pan] C. G. Panait, W. Bendick, A. Fuchsmann, A.-F. Gourgues-Lorenzon, J. Besson, Study of the microstructure of the Grade 91 steel after more than 100,000 h of creep exposure at 600 °C, Int. J. Press. Vessel. Pip. 87, 326–335 (2010).
