Precipitation Simulation (TC-PRISMA)

Combining the TCS High Entropy Alloys Database (TCHEA) with the compatible , TCS High Entropy Alloy Mobility Database (MOBHEA), the precipitation process can be simulated using the Precipitation Calculator, which is part of the Add-on Precipitation Module (TC-PRISMA) in Thermo‑Calc. This example shows the Precipitation Calculator simulation of L12 precipitation in (NiCoFeCr)94Ti2Al4 FCC HEA matrix, in comparison with experimental information from [2018Zha].

Read more about the Precipitation Module (TC-PRISMA) on our website. If you are in Thermo‑Calc, press F1 to search the help to learn about the available settings included with the Add-on Module.

simulation of L12 precipitate from the (NiCoFeCr)94Ti2Al4 HEA matrix at various temperatures. This plot shows the mean radius of the L12 precipitates.

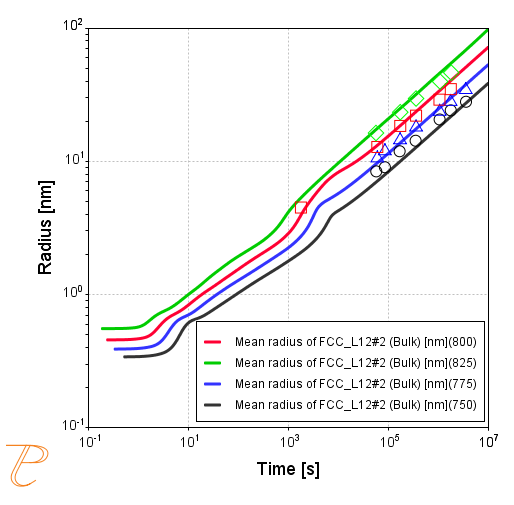

Figure 1: A Precipitation Module (TC-PRISMA) simulation of L12 precipitate from the (NiCoFeCr)94Ti2Al4 HEA matrix at various temperatures. This plot shows the mean radius of the L12 precipitates.

simulation of L12 precipitate from the (NiCoFeCr)94Ti2Al4 HEA matrix at various temperatures. This shows the number of densities of the L12 precipitates. Curves are using the Precipitation Calculator simulation results and symbols are experimental data.

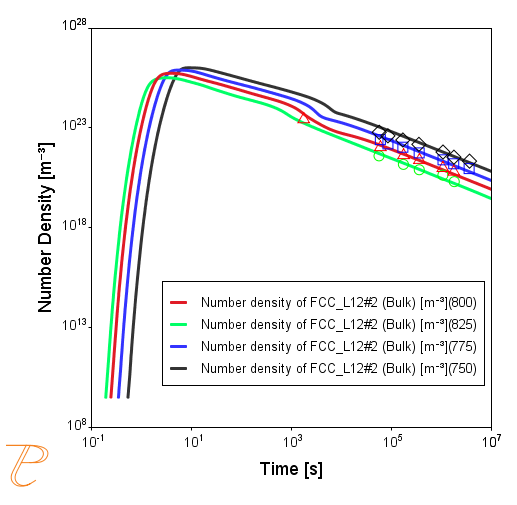

Figure 2: A Precipitation Module (TC-PRISMA) simulation of L12 precipitate from the (NiCoFeCr)94Ti2Al4 HEA matrix at various temperatures. This shows the number of densities of the L12 precipitates. Curves are using the Precipitation Calculator simulation results and symbols are experimental data from [2018Zha].

Reference

[2018Zha] Y. Y. Zhao, H. W. Chen, Z. P. Lu, T. G. Nieh, Thermal stability and coarsening of coherent particles in a precipitation-hardened (NiCoFeCr)94Ti2Al4 high-entropy alloy. Acta Mater. 147, 184–194 (2018).
