Viscosity of Cu-Ni-Al-Co-Fe Alloy

Viscosity of liquid can be calculated directly using the TCS High Entropy Alloys Database (TCHEA) as a function of chemical composition and temperature.

The viscosity thermophysical property data is included with the TCS High Entropy Alloys Database (TCHEA) starting with version 4 (TCHEA4).

The kinematic viscosity of equiatomic liquid alloy Cu-Ni-Al-Co-Fe is shown.

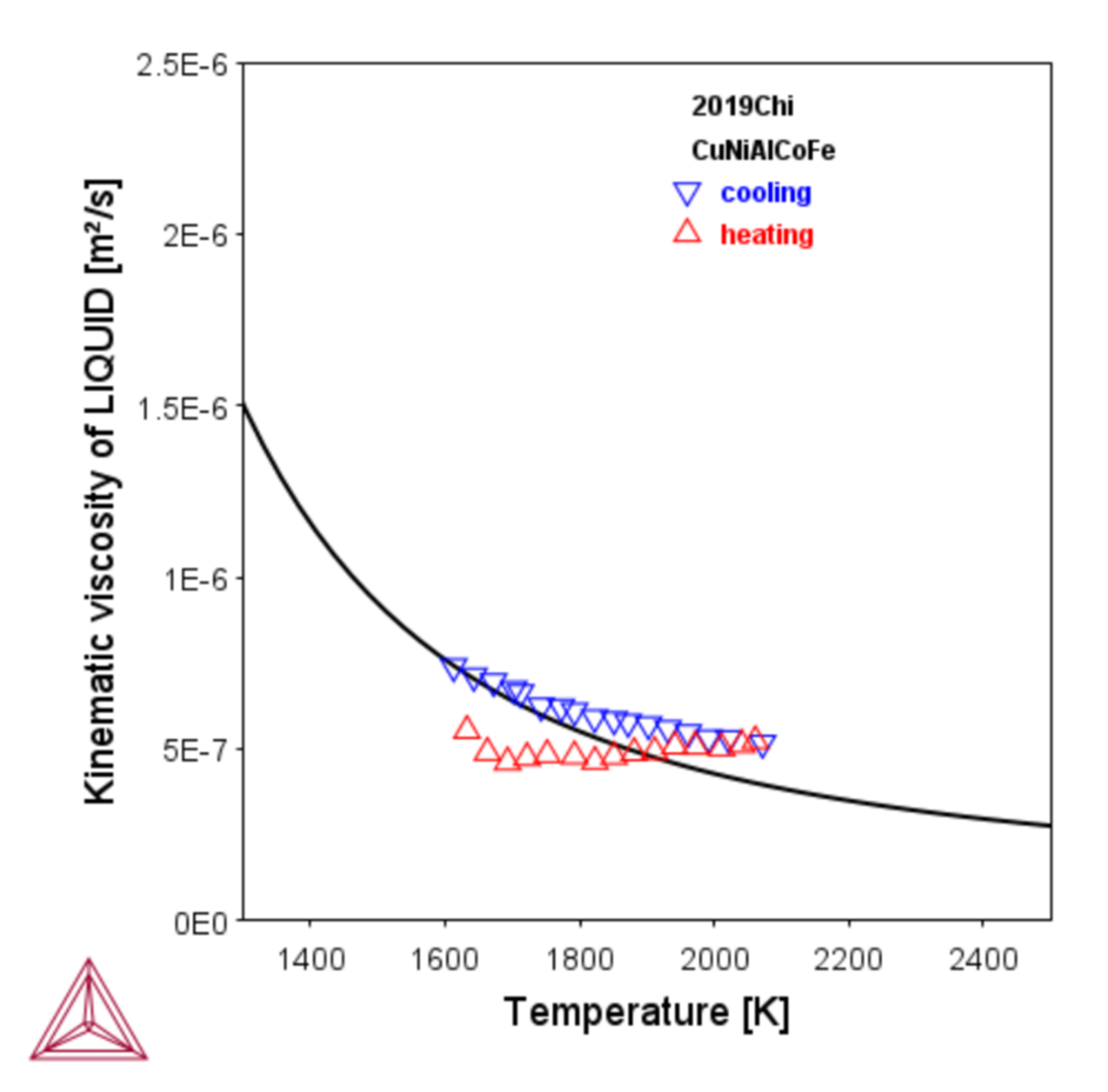

Calculated kinematic viscosity of equiatomic CuNiAlCoFe alloy along with experimental data

Figure 1: Calculated kinematic viscosity of equiatomic Cu-Ni-Al-Co-Fe alloy along with experimental data from [2019Chi].

Reference

[2019Chi]  O. Chikova, V. Tsepelev, V. V’yukhin, K. Shmakova, V. Il’in, Viscosity and Electrical Resistivity of Liquid CuNiAl, CuNiAlCo, CuNiAlCoFe Alloys of Equiatomic Compositions. Acta Metall. Slovaca. 25, 259–266 (2019).
