Yield Strength

In Thermo‑Calc, a Yield Strength Model is available with the Property Model Calculator and directly calculates yield stress. Yield strength is also available as a variable when working with Plots and Tables that are successors to the Precipitation Calculator. When using the Add-on Precipitation Module (TC-PRISMA), the Yield Strength Model returns the yield strength at room temperature for the specified material using the equilibrium values calculated at temperature T. The Model is defined by further setting the following contributions: intrinsic strength, solid solution strengthening, grain boundary strengthening and precipitation strengthening.

Read more on our website about Property Models, including information about the material specific Model Libraries (i.e steel, nickel, titanium, etc.), as well as how to create your own custom models in TC‑Python. If you are in Thermo‑Calc, press F1 to search the help.

About the Yield Strength Property Model and Property Model Calculator

Mo-Ta BCC Binary Alloy

Total yield strength of the Mo-Ta BCC binary alloy in comparison with the experimental data

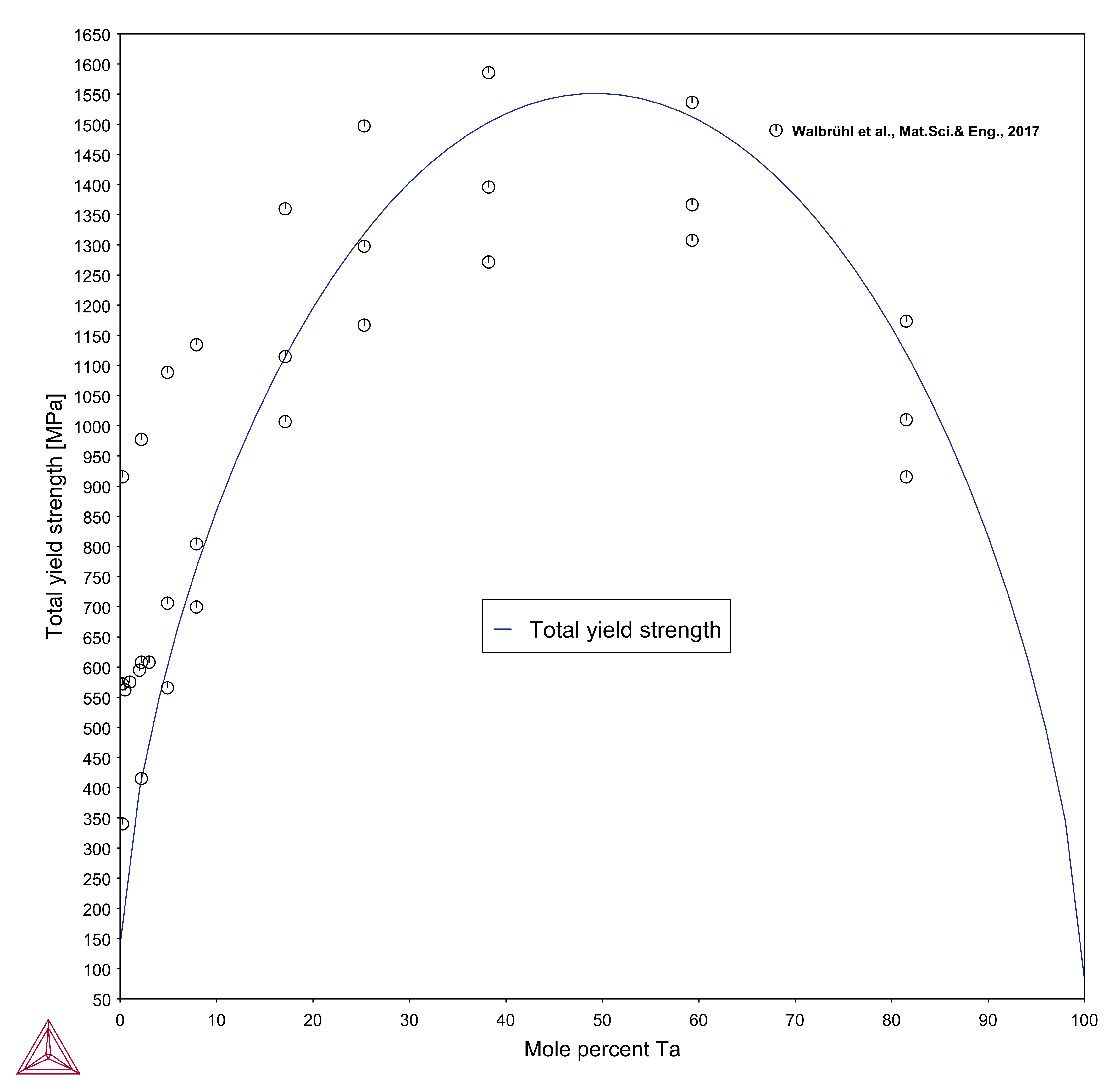

Figure 1: Total yield strength of the Mo-Ta BCC binary alloy in comparison with the experimental data from [2017Wal]. This example is included with Thermo‑Calc as a Property Model example named PM_G_06_Yield_Strength_HEA.

Reference

[2017Wal] M. Walbruhl, D. Linder, J. Ågren, A. Borgenstam, Modelling of solid solution strengthening in multicomponent alloys. Mater. Sci. Eng. A. 700, 301–311 (2017).
