Pseudo-binary Phase Diagram

This example using the TCS Ni-based Superalloys Database (TCNI) is a type of calculated isoplethal phase diagram section of a ternary system called a pseudo-binary, meaning that the section lies precisely in the plane of constant potentials (meaning along tie-lines). It is compared with literature data.

Section ZrO2-Y2O3 compared with experimental data.

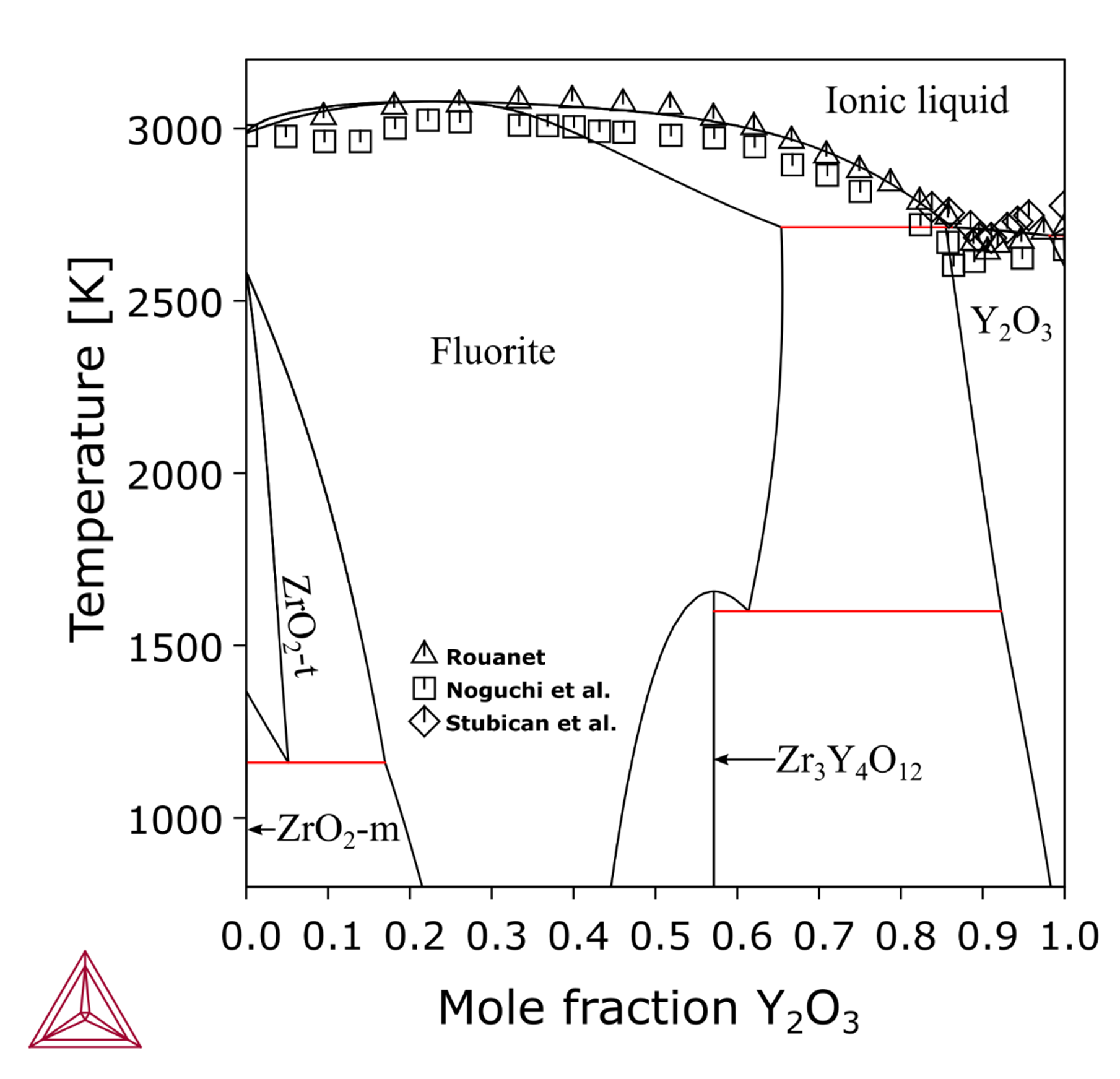

Figure 1: Section ZrO2-Y2O3 compared with experimental data [1968Rou; 1970Nog; 1978Stu].

References

[1968Rou] A. Rouanet, High-temperature solidification and phase diagrams of the ZrO2–Er2O3, ZrO2–Y2O3, and ZrO2–Yb2O3 systems (Diagrammes de solidification et diagrammes de phases de haute temperature des systemes zircone-oxyde d’ erbium, zircone-oxyde d’yttrium et. Comptes Rendus l’Academie des Sci. Ser. C Chem. 267, 1581–1584 (1968).

[1970Nog] T. Noguchi, M. Mizuno, T. Yamada, The Liquidus Curve of the ZrO2-Y2O3 System as Measured by a Solar Furnace. Bull. Chem. Soc. Jpn. 43, 2614–2616 (1970).

[1978Stu] V. S. Stubican, R. C. Hink, S. P. Ray, Phase Equilibria and Ordering in the System ZrO2-Y2O3. J. Am. Ceram. Soc. 61, 17–21 (1978).
