Surface Tension of CMSX-10 Superalloy

The surface tension thermophysical property data is included with the TCS Ni-based Superalloys Database (TCNI) starting with version 10 (TCNI10).

Wunderlich [2017Wun] measured the surface tension of CMSX-10 superalloy in the liquid state by the oscillating drop method in a container-less electromagnetic processing device on board a parabolic flight airplane. Mohr [2020Moh] performed their measurements in the electromagnetic levitator on board the International Space Station. The comparison between these two measurements and our description is shown.

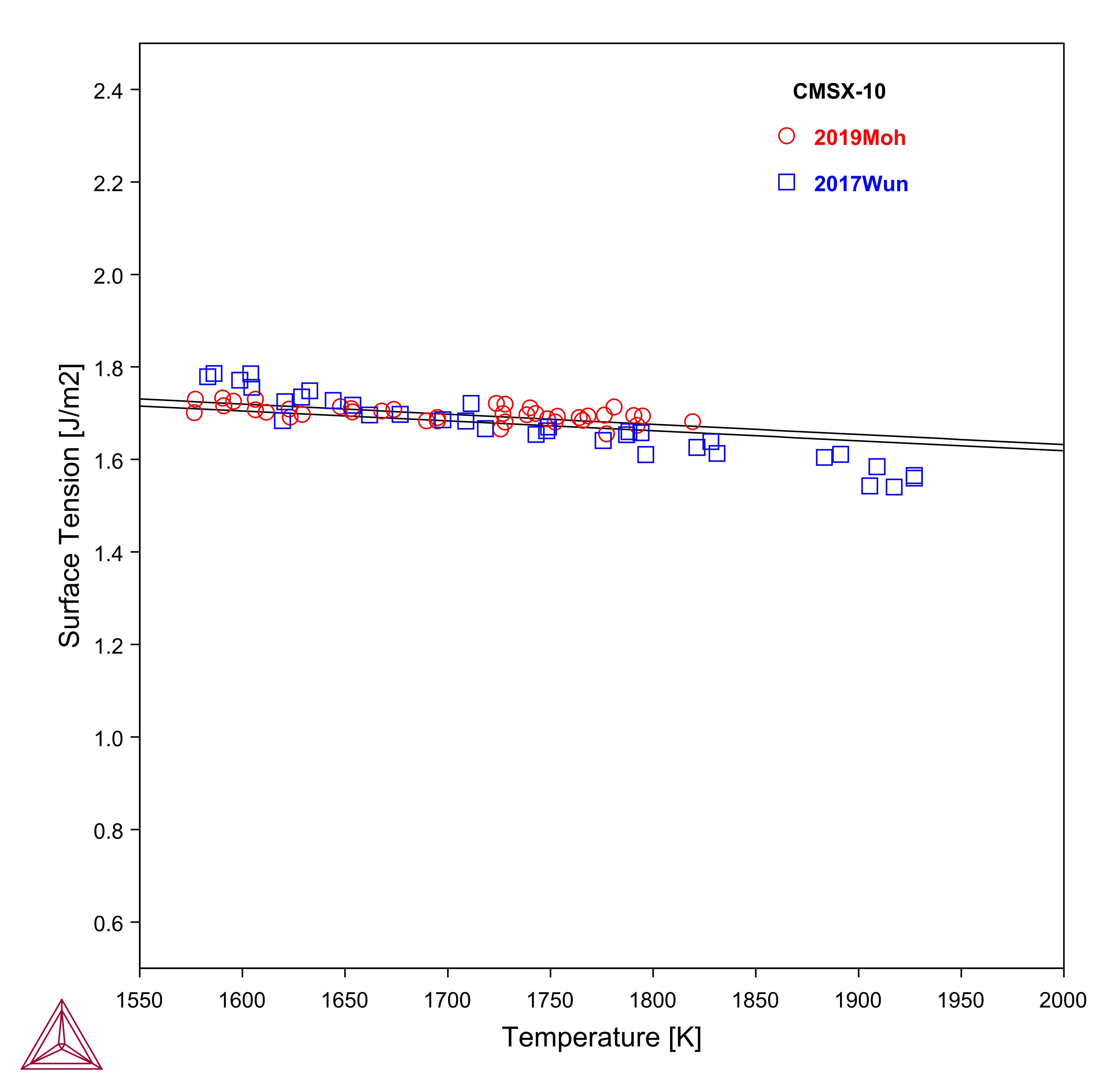

Calculated surface tension of CMSX10 alloy along with experimental data

Figure 1: Calculated surface tension of CMSX10 superalloy along with experimental data from [2017Wun; 2020Moh].

References

[2017Wun]  R. K. Wunderlich, H.-J. Fecht, G. Lohöfer, Surface Tension and Viscosity of the Ni-Based Superalloys LEK94 and CMSX-10 Measured by the Oscillating Drop Method on Board a Parabolic Flight. Metall. Mater. Trans. B. 48, 237–246 (2017).

[2020Moh]  M. Mohr, R. Wunderlich, Y. Dong, D. Furrer, H.-J. Fecht, Thermophysical Properties of Advanced Ni‐Based Superalloys in the Liquid State Measured on Board the International Space Station. Adv. Eng. Mater. 22, 1901228 (2020).
