Thermal Conductivity of Some Commercial Alloys

Using the TCS Ni-based Superalloys Database (TCNI), you can calculate the quantities of a phase φ with the variable THCD(φ), or a system (i.e. alloy) with THCD. You can also calculate the derived quantities, i.e. thermal resistivity (THRS) and thermal diffusivity (THDF), in a similar way.

The database includes thermal conductivity starting with version 11 (TCNI11).

Ni-base Superalloy IN702

With the thermal conductivity described for most binary and several ternary systems, predictions can be made for multicomponent alloys, such as a Ni-base alloy IN702 in this example. The thermal conductivity of Ni-base alloys is usually in the range 10-20 W/mK.

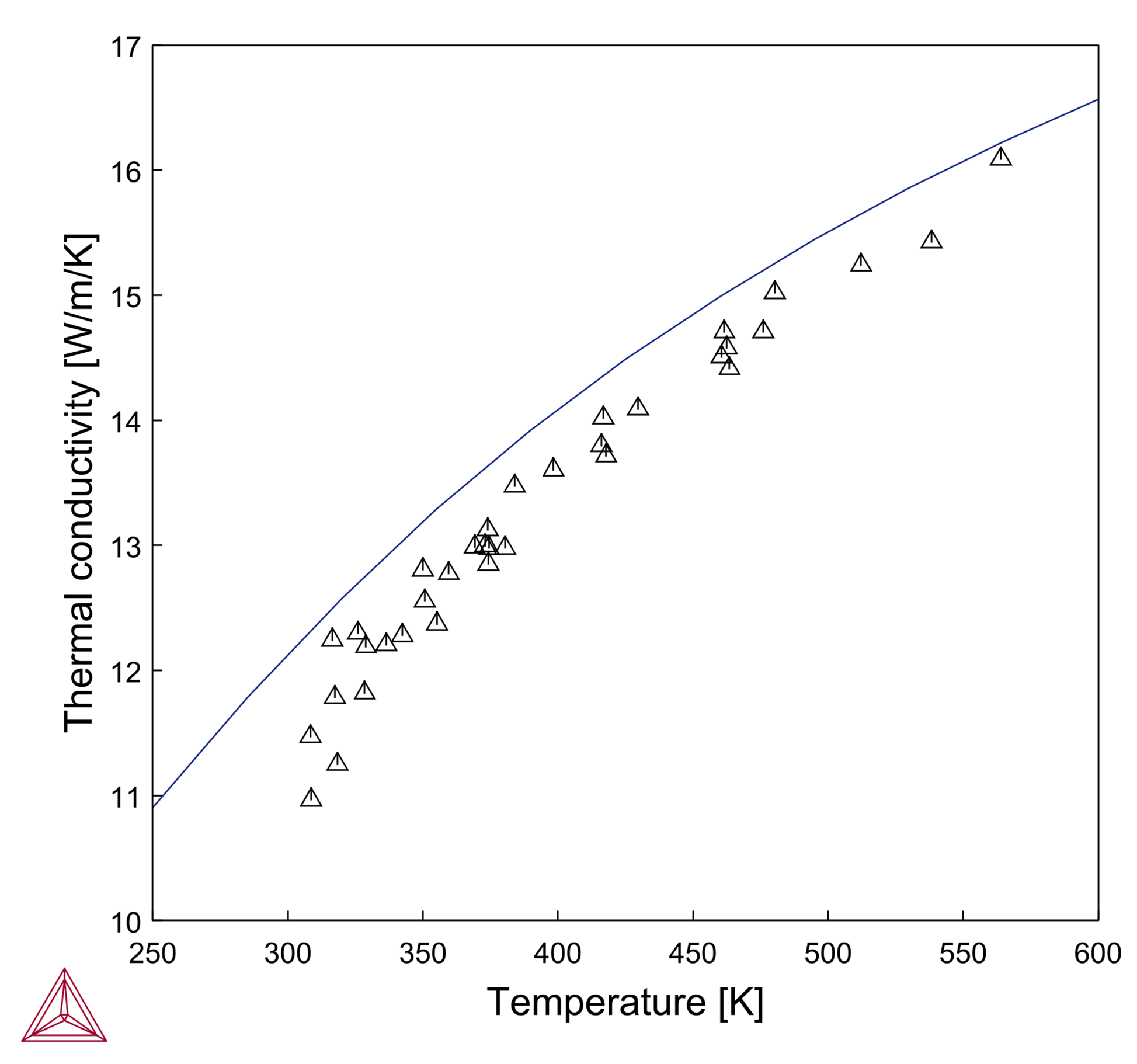

Thermal conductivity of alloy IN702 predicted using the Frozen-in Temperature model included with the Property Model Calculator and compared with experimental data.

Figure 1: Thermal conductivity of alloy IN702 predicted using the Frozen-in Temperature Model available with the Property Model Calculator and compared with experimental data.

Commercial Ni-base Alloys

This example shows the predicted thermal conductivity of several commercial Ni-base alloys. The values are calculated by freezing-in the state at the typical annealing temperature of manufacture for each alloy. Deviations are expected, since the treatment of a material is not always known in the literature, and materials can have wide ranges of typical treatment temperatures.

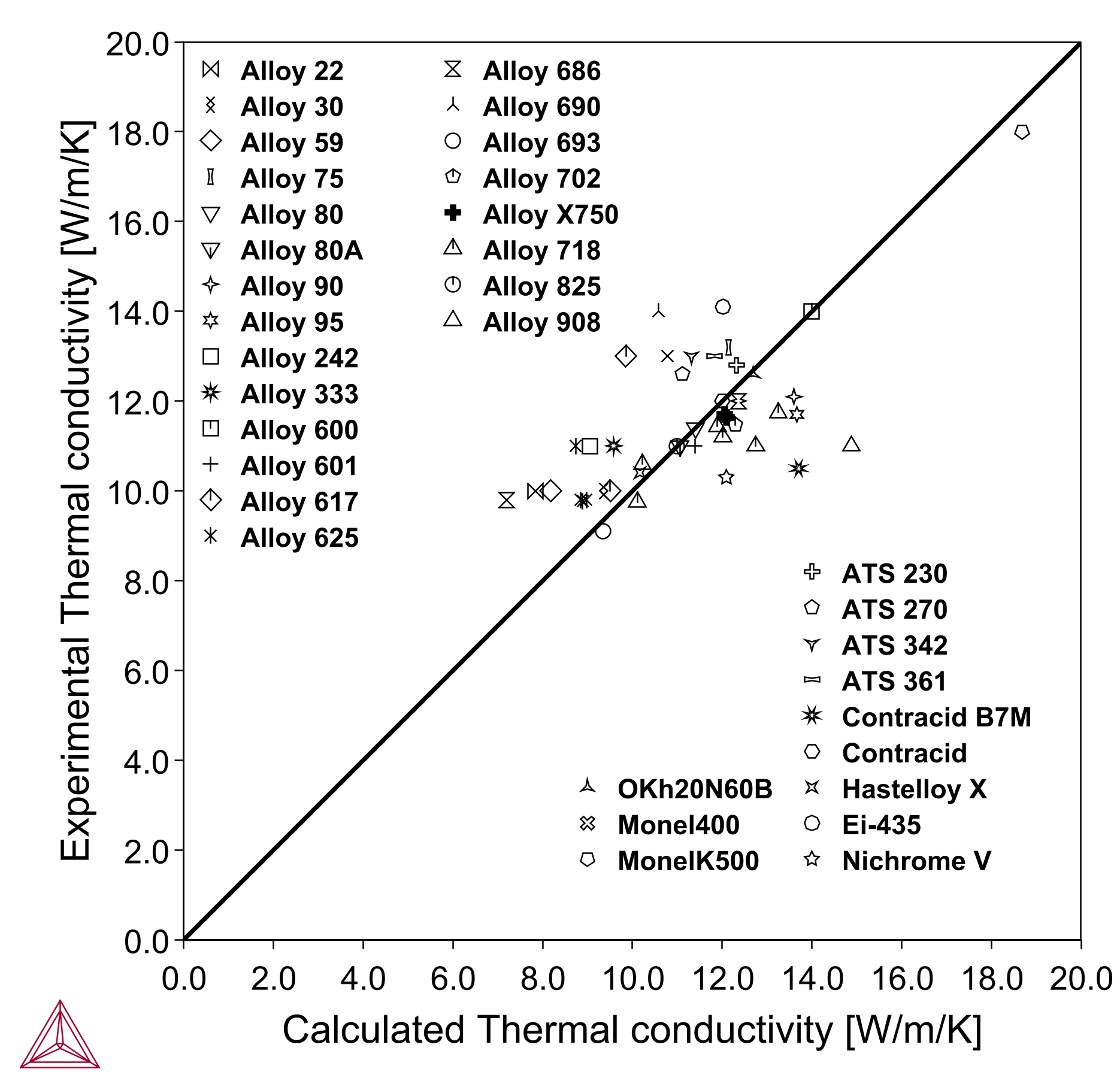

Parity plot comparing calculated with experimental thermal conductivity of various Ni-base superalloys at room temperature.

Figure 2: Parity plot comparing calculated with experimental thermal conductivity of various Ni-base superalloys at room temperature.
