Viscosity of CMSX-10 Superalloy

The viscosity thermophysical property data is included with TCS Ni-based Superalloys Database (TCNI) starting with version 10 (TCNI10).

Wunderlich [2017Wun] measured the viscosity of CMSX-10 superalloy by the oscillating drop method in a container-less electromagnetic processing device on board a parabolic flight airplane. Mohr [2020Moh] performed their measurements in the electromagnetic levitator on board the International Space Station. The comparison between these two measurements and our description is shown.

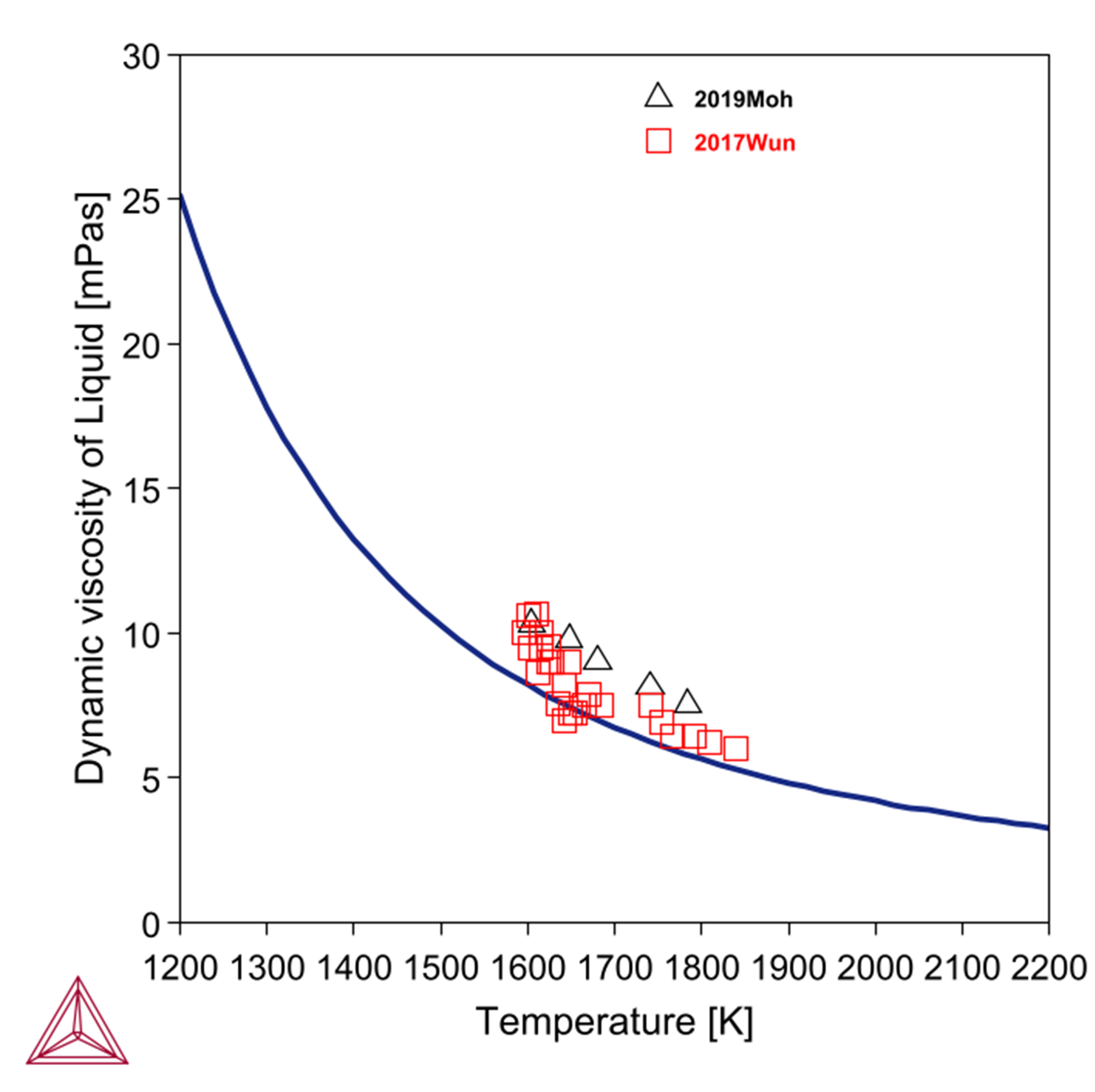

Calculated viscosity of CMSX10 along with experimental data.

Figure 1: Calculated viscosity of CMSX10 along with experimental data.

References

[2017Wun]  R. K. Wunderlich, H.-J. Fecht, G. Lohöfer, Surface Tension and Viscosity of the Ni-Based Superalloys LEK94 and CMSX-10 Measured by the Oscillating Drop Method on Board a Parabolic Flight. Metall. Mater. Trans. B. 48, 237–246 (2017).

[2020Moh]  M. Mohr, R. Wunderlich, Y. Dong, D. Furrer, H.-J. Fecht, Thermophysical Properties of Advanced Ni‐Based Superalloys in the Liquid State Measured on Board the International Space Station. Adv. Eng. Mater. 22, 1901228 (2020).
