Surface Tension of Ag-Cu-Sn

The surface tension thermophysical property data is included with the TCS Solder Alloy Solutions Database (TCSLD) starting with version 4 (TCSLD4).

(Ag7-Cu3-Sn)100-xSnx

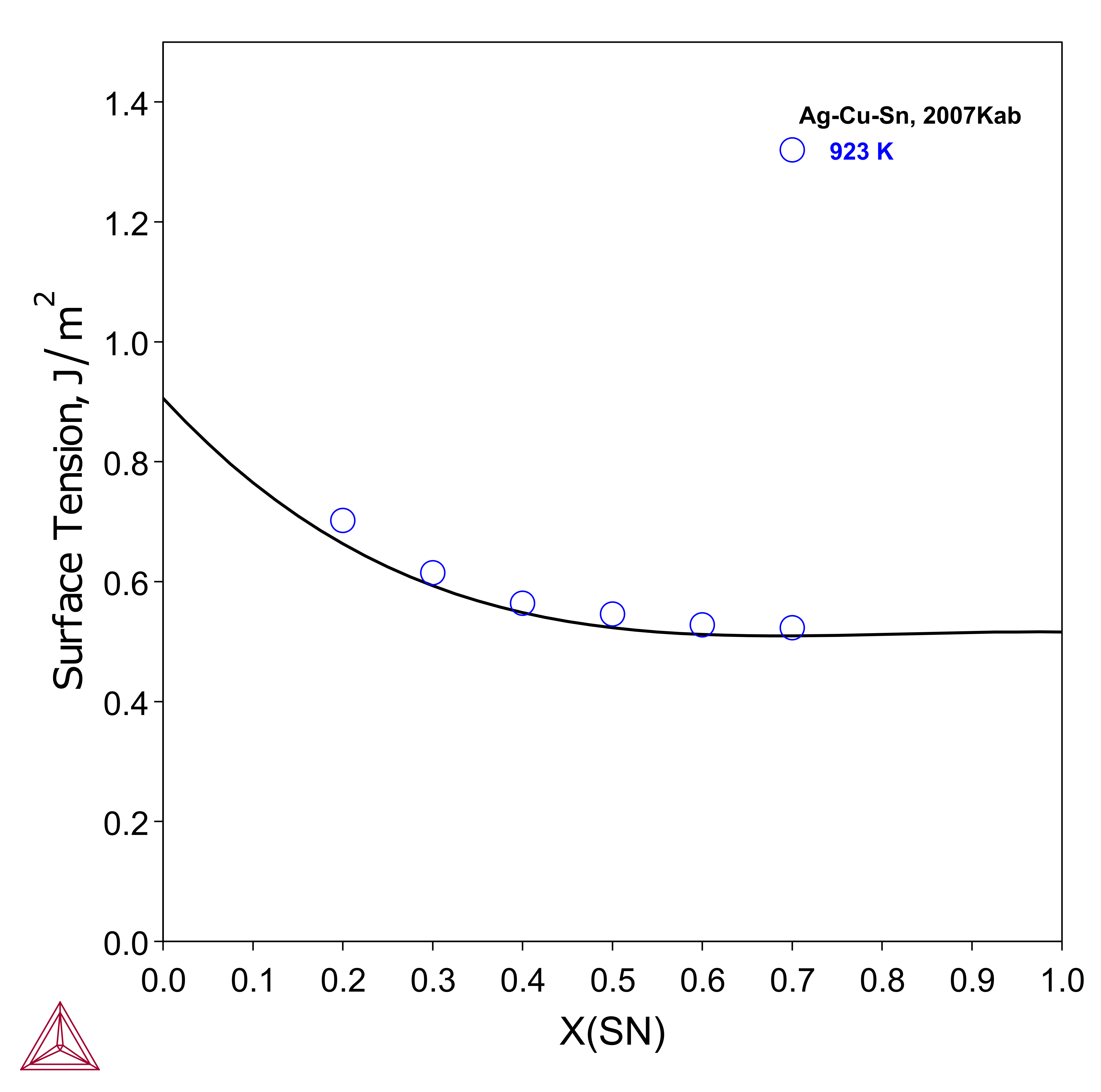

Surface tension of (Ag7Cu3)100-xSnx as a function of Sn composition at 923 K.

Figure 1: Surface tension of (Ag7Cu3)100-xSnx as a function of Sn composition at 923 K. Experimental data are taken from [2007Kab].

Reference

[2007Kab] I. Kaban, S. Gruner, W. Hoyer, Surface tension and density in liquid Ag–Cu–Sn alloys. J. Non. Cryst. Solids. 353, 3717–3721 (2007).
