PM_Fe_06: TTT Diagram for Fe-C-Mn-Si-Cr-V

The example uses the Property Model Calculator and the TTT Diagram Property Model to calculate a Time-Temperature-Transformation (TTT) diagram for an Fe-C-Mn-Si-Cr-V alloy (Steel 42CrV6). The calculation is compared to an experimental TTT diagram for the same steel (with some other impurities) from data in [1958Wev].

A One Axis Calculation Type is selected on the Property Model Calculator and then the TTT Mode selected on the Plot Renderer as the Plot type in order to plot the final TTT diagram.

A second plot also shows the calculated terminal fractions of ferrite, pearlite, and bainite.

For more information see About the TTT Diagram Property Model, TTT Diagram Property Model Settings, and Plot Type: TTT Mode.

  • Folder: Property Models → Steel
  • File name: PM_Fe_06_Fe-C-Mn-Si-Cr-V_TTT.tcu

To run calculations with the Steel Models requires a valid maintenance license plus licenses for both the TCFE (version 9 and newer) and MOBFE (version 4 and newer) databases. Also see our website to learn more about the Steel Model Library and other related examples.

Visualizations

Many of our Graphical Mode examples have video tutorials, which you can access in a variety of ways. When in Thermo‑Calc, from the menu select Help → Video Tutorials, or from the main My Project window, click Video Tutorials. Alternately, you can go to the website or our YouTube channel.

Open the example project file to review the node setup on the Project window and the associated settings on the Configuration window for each node. For some types of projects, you can also adjust settings on the Plot Renderer Configuration window to preview results before performing the simulation. Click Perform Tree to generate plots and tables to see the results on the Visualizations window.

When you run (Perform) this example, it takes several hours to complete the calculations.

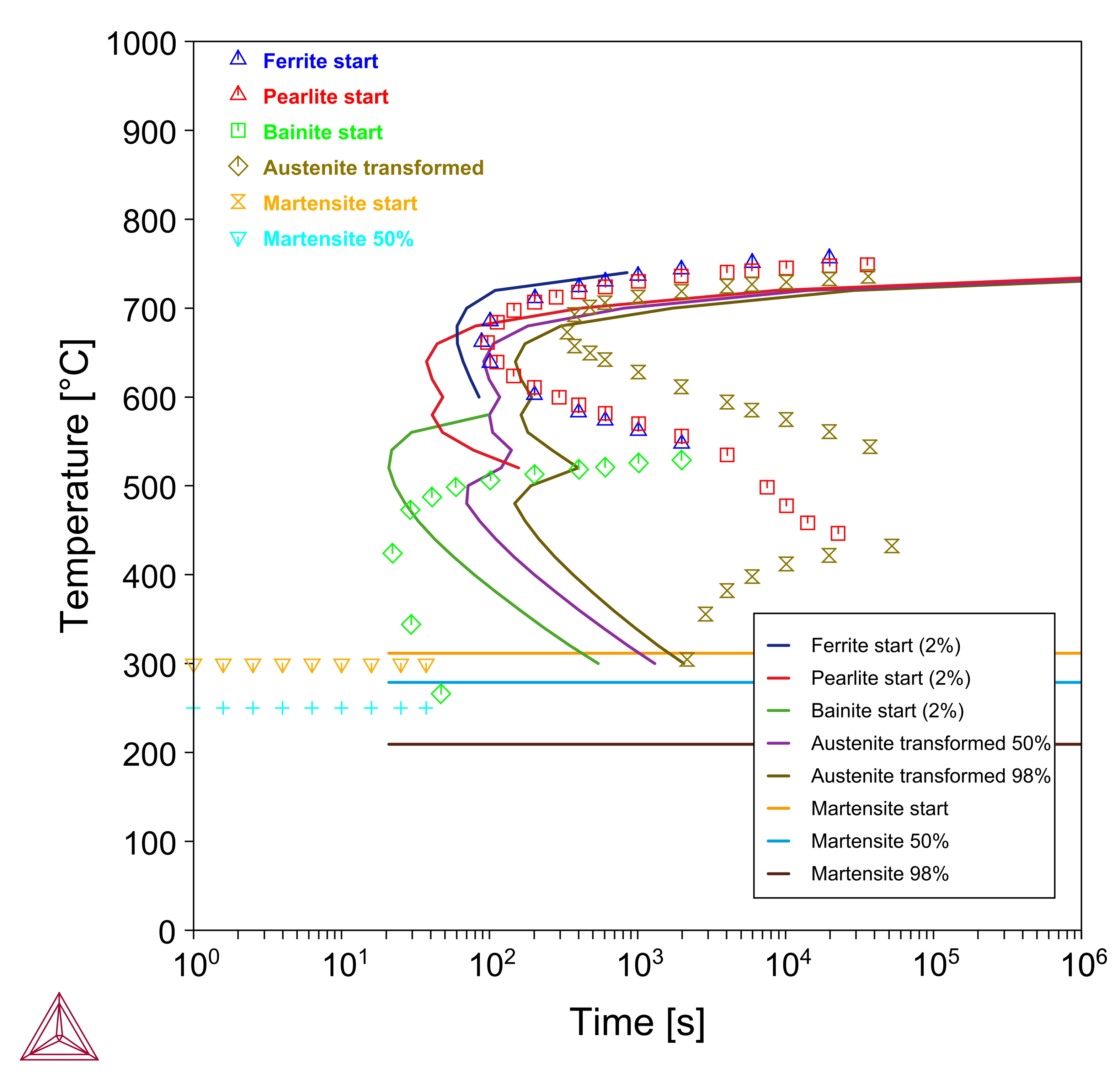

The TTT diagram for an Fe-C-Mn-Si-Cr-V alloy comparing the calculation with experimental data

Figure 1: The TTT diagram for an Fe-C-Mn-Si-Cr-V alloy comparing the calculation with experimental data from [1958Wev].

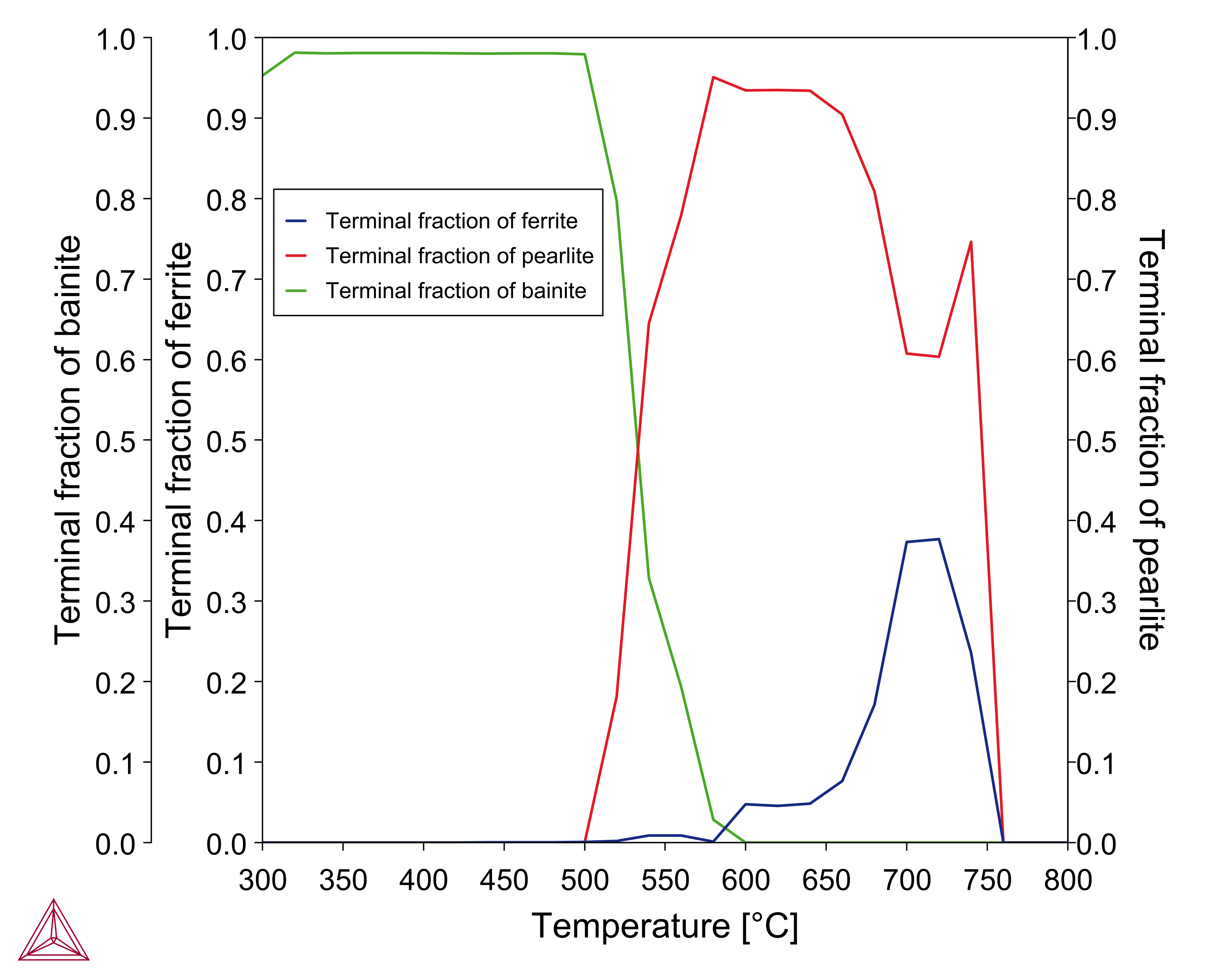

The terminal fractions quantities for bainite, ferrite, and pearlite are plotted against the cooling rate for the Fe-C-Mn-Si-Cr-V alloy

Figure 2: The terminal fractions quantities for bainite, ferrite, and pearlite are plotted against the cooling rate for the Fe-C-Mn-Si-Cr-V alloy.

Reference

[1958Wev] F. Wever, A. Rose, Atlas zur Wärmebehandlung der Stähle: 1954/56/58 (Verlag Stahleisen, Düsseldorf, 1958), p. II-112.
