Solidification

A slag with a given composition: 52% CaO-25% SiO2-13.5% Al2O3-1.5% FeO-MgO. The solidus is calculated using the TCS Metal Oxide Solutions Database (TCOX) with increasing MgO content.

A slag with a given composition where the solidus is calculated with an increasing MgO content.

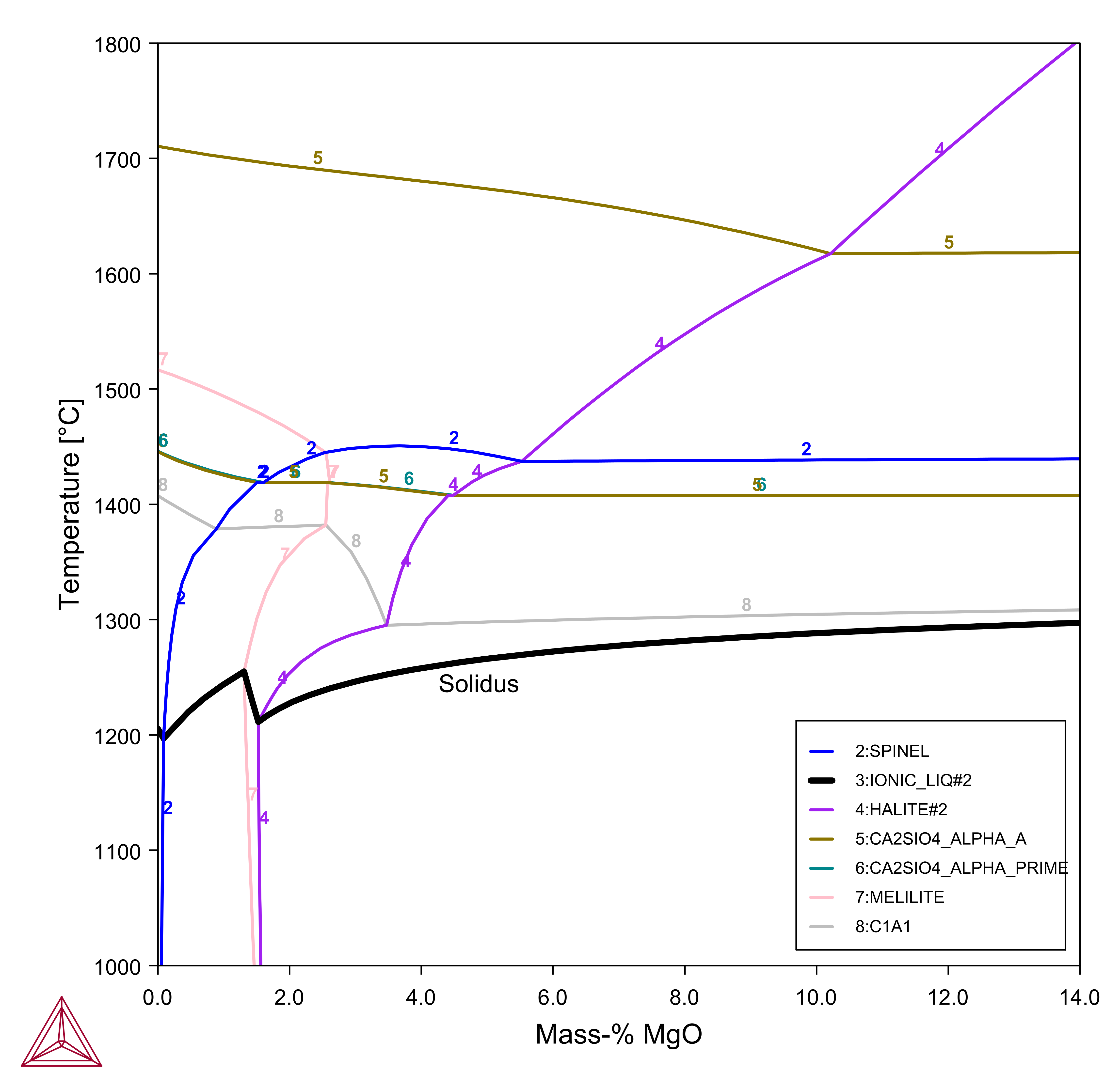

Figure 1: A slag with a given composition where the solidus is calculated with an increasing MgO content.
