Example 1 – Draw Lines and Symbols

The macro text below produces the example output. You can copy the text into your own EXP file, or use the example file DATAPLOT 1 - Draw Lines and Symbols.EXP available with your installation. To open the folder: From the Thermo‑Calc menu, select Help → Manuals Folder.

Output Example

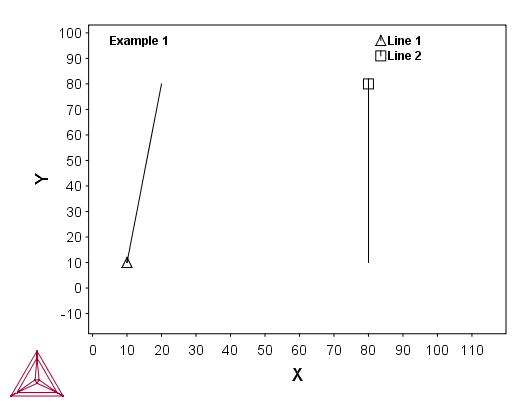

Example Plot output using DATAPLOT to draw lines and symbols

Macro Text

DATAPLOT Example 1

PROLOG 1 EXAMPLE 1 0<X<100, 0<Y<100

XSCALE 0.00000 100

YSCALE 0.00000 100

XTYPE LINEAR

YTYPE LINEAR

XLENGTH 11.5000

YLENGTH 11.5000

TITLE EXAMPLE 1

XTEXT X

YTEXT Y

DATASET 1 Two lines started with two symbols

ATTRIBUTE CENTER

0.05 0.95 N'Example 1

0.7 0.95 NS'Line 1

0.7 0.90 NS2'Line 2

10 10 S1

20 80 D

80 80 S2

80 10 D

50 60
