Example 9 - DIGLIB Fonts and Lines

The macro text below produces the example output. You can copy the text into your own EXP file, or use the example file DATAPLOT 9 - DIGLIB Fonts.EXP available with your installation. To open the folder: From the Thermo‑Calc menu, select Help → Manuals Folder.

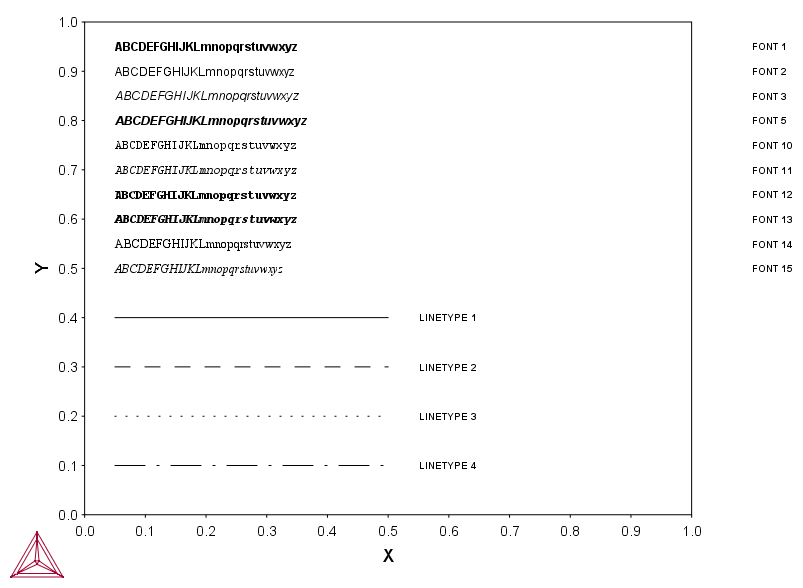

Output Example

Macro Text

$DATAPLOT Example 9 - DIGLIB Fonts

PROLOG 1 DIGLIB Fonts & Line Types 0<X<1, 0<Y<1

XSCALE 0.0 1.0

YSCALE 0.0 1.0

XTYPE LINEAR

YTYPE LINEAR

XLENGTH 11.5000

YLENGTH 11.5000

TITLE DIGLIB Fonts

XTEXT X

YTEXT Y

DATASET 1 Various DIGLIB Fonts and Line Types:

$ DIGLIB Fonts:

CHARSIZE .35

FONT 1

0.05 0.95 N'ABCDEFGHIJKLmnopqrstuvwxyz

FONT 2

0.05 0.90 N'ABCDEFGHIJKLmnopqrstuvwxyz

FONT 3

0.05 0.85 N'ABCDEFGHIJKLmnopqrstuvwxyz

FONT 5

0.05 0.80 N'ABCDEFGHIJKLmnopqrstuvwxyz

FONT 10

0.05 0.75 N'ABCDEFGHIJKLmnopqrstuvwxyz

FONT 11

0.05 0.70 N'ABCDEFGHIJKLmnopqrstuvwxyz

FONT 12

0.05 0.65 N'ABCDEFGHIJKLmnopqrstuvwxyz

FONT 13

0.05 0.60 N'ABCDEFGHIJKLmnopqrstuvwxyz

FONT 14

0.05 0.55 N'ABCDEFGHIJKLmnopqrstuvwxyz

FONT 15

0.05 0.50 N'ABCDEFGHIJKLmnopqrstuvwxyz

FONT 1

CLIP OFF

CHARSIZE .30

1.10 0.95 N'FONT 1

1.10 0.90 N'FONT 2

1.10 0.85 N'FONT 3

1.10 0.80 N'FONT 5

1.10 0.75 N'FONT 10

1.10 0.70 N'FONT 11

1.10 0.65 N'FONT 12

1.10 0.60 N'FONT 13

1.10 0.55 N'FONT 14

1.10 0.50 N'FONT 15

CLIP ON

$ DIGLIB Line Types:

LINETYPE 1

BLOCK X=C1; Y=C2; GOC=C3,DWA

0.05 0.40 M

0.50 0.40

BLOCKEND

$DRAWLINE 0.05,0.40 0.5,0.40

LINETYPE 2

BLOCK X=C1; Y=C2; GOC=C3,DWA

0.05 0.30 M

0.50 0.30

BLOCKEND

$DRAWLINE 0.05,0.30 0.5,0.30

LINETYPE 3

BLOCK X=C1; Y=C2; GOC=C3,DWA

0.05 0.20 M

0.50 0.20

BLOCKEND

$DRAWLINE 0.05,0.20 0.5,0.20

LINETYPE 4

BLOCK X=C1; Y=C2; GOC=C3,DWA

0.05 0.10 M

0.50 0.10

BLOCKEND

$DRAWLINE 0.05,0.10 0.5,0.10

0.55 0.40 N' LINETYPE 1

0.55 0.30 N' LINETYPE 2

0.55 0.20 N' LINETYPE 3

0.55 0.10 N' LINETYPE 4
