Example 4 – Draw Curves Defined by Functions

The macro text below produces the example output. You can copy the text into your own EXP file, or use the example file DATAPLOT 4 - Curves and Functions.EXP available with your installation. To open the folder: From the Thermo‑Calc menu, select Help → Manuals Folder.

Output Example

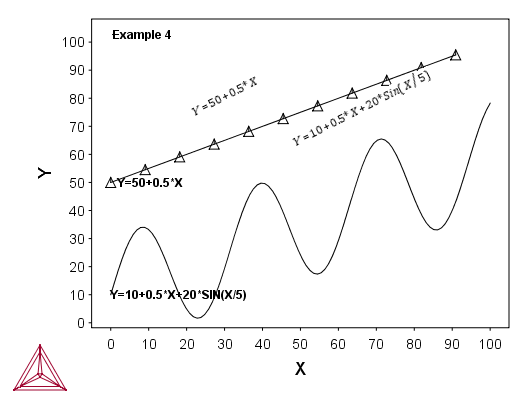

Example Plot output using DATAPLOT to draw curves defined by functions

Macro Text

$DATAPLOT Example 4

PROLOG 4 EXAMPLE 4 0<X<100, 0<Y<100

XSCALE 0.00000 100

YSCALE 0.00000 100

XTYPE LINEAR

YTYPE LINEAR

XLENGTH 11.5000

YLENGTH 11.5000

TITLE EXAMPLE 4

XTEXT X

YTEXT Y

DATASET 4 Plot two functions as lines:

ATTRIBUTE CENTER

0.05 0.95 N'Example 4

$ Draw two lines defined by FUNCTIONS:

FUNCTION Y=10+0.5*X+20*Sin(X/5); 0 100 100; DWA;

FUNCTION Y=50+0.5*X; 0 100 10; DS1WA;

$ Write functions beside the lines:

$ Note the real rotation angle (27 degree) can be seen

$ only on the PostScript hardcopy

0.25 0.68 N'^RO27Y=50+0.5*X

0.25 0.45 N'^RO27Y=10+0.5*X+20*Sin(X/5)
