Example 5 – Use Included Files for Predefined Symbols

The macro text below produces the example output. You can copy the text into your own EXP file, or use the example file DATAPLOT 5 - Predefined Symbols.EXP available with your installation. To open the folder: From the Thermo‑Calc menu, select Help → Manuals Folder.

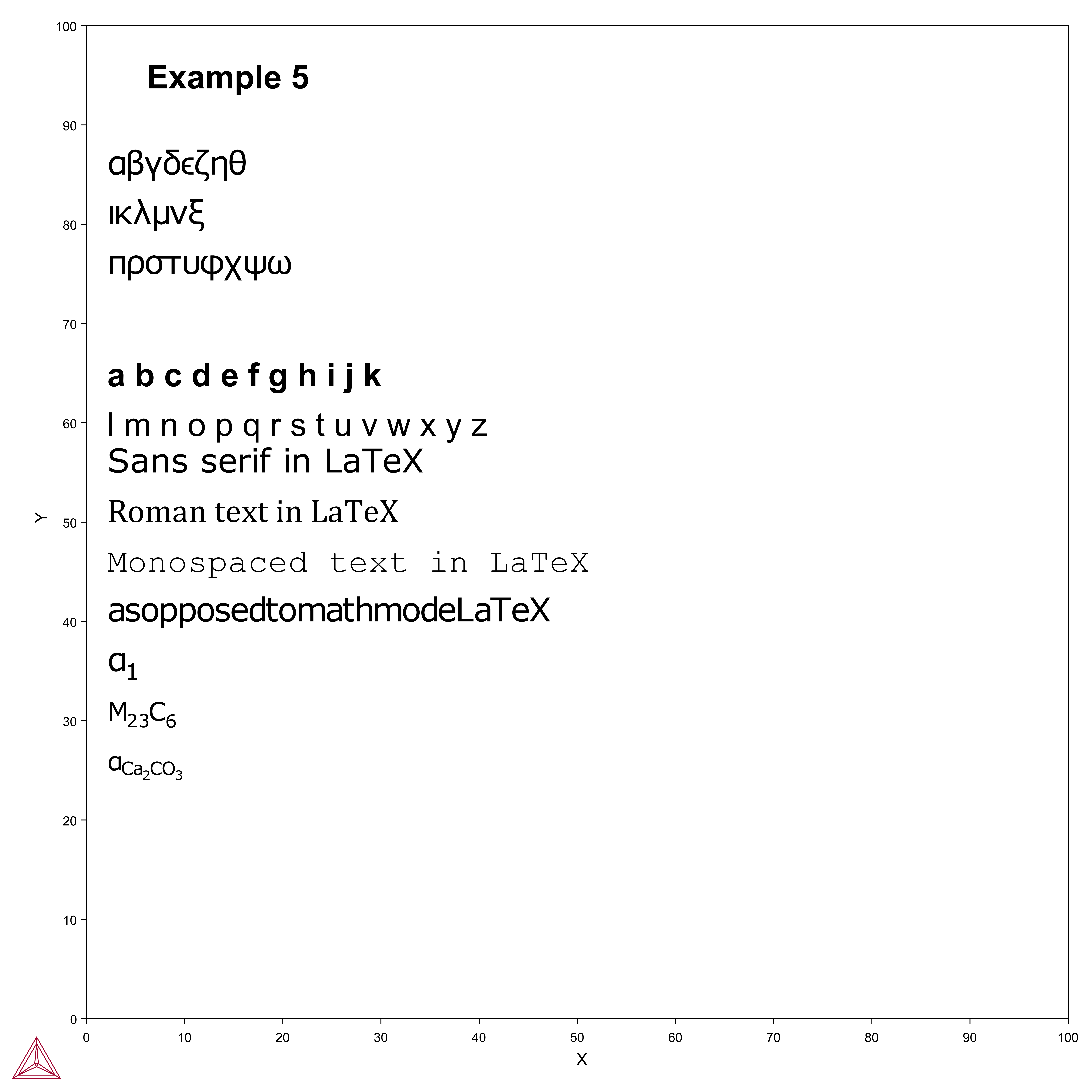

Output Example

In the plot result, the hard-to-read LaTeX line is intended to highlight how to type readable text using LaTeX.

Macro Text

$DATAPLOT Example 5 Symbols

PROLOG 5 EXAMPLE 5 0<X<100, 0<Y<100

XSCALE 0.00000 100

YSCALE 0.00000 100

XTYPE LINEAR

YTYPE LINEAR

XLENGTH 11.5000

YLENGTH 11.5000

TITLE EXAMPLE 5

XTEXT X

YTEXT Y

DATASET 5 Write equations and strings with different properties

STRING TEST1A \latex \alpha \beta \gamma \delta \epsilon \zeta \eta \theta

STRING TEST1B \latex \iota \kappa \lambda \mu \nu \xi \omicron

STRING TEST1C \latex \pi \rho \sigma \tau \upsilon \phi \chi \psi \omega

STRING TEST2A a b c d e f g h i j k

STRING TEST2B l m n o p q r s t u v w x y z

STRING BCC1 \latex \alpha_1

STRING ACA2CO3 \latex \alpha_{Ca_2CO_3}

ATTRIBUTE CENTER

CHARSIZE 1

0.05 0.95 N'Example 5

CLIP OFF

0.01 0.85 N'~TEST1A

0.01 0.80 N'~TEST1B

0.01 0.75 N'~TEST1C

FONT 1

0.01 0.65 N'~TEST2A

FONT 2

0.01 0.60 N'~TEST2B

0.01 0.55 N'\latex \textsf{Sans serif in LaTeX}

0.01 0.50 N'\latex \textrm{Roman text in LaTeX}

0.01 0.45 N'\latex \texttt{Monospaced text in LaTeX}

0.01 0.40 N'\latex as opposed to math mode LaTeX

0.01 0.35 N'~BCC1

CHARSIZE 0.8

0.01 0.30 N'\latex M_{23}C_6

0.01 0.25 N'~ACA2CO3
