Example 7 – Color Codes

The macro text below produces the example output. You can copy the text into your own EXP file, or use the example file DATAPLOT 7 - Color Codes.EXP available with your installation. To open the folder: From the Thermo‑Calc menu, select Help → Manuals Folder.

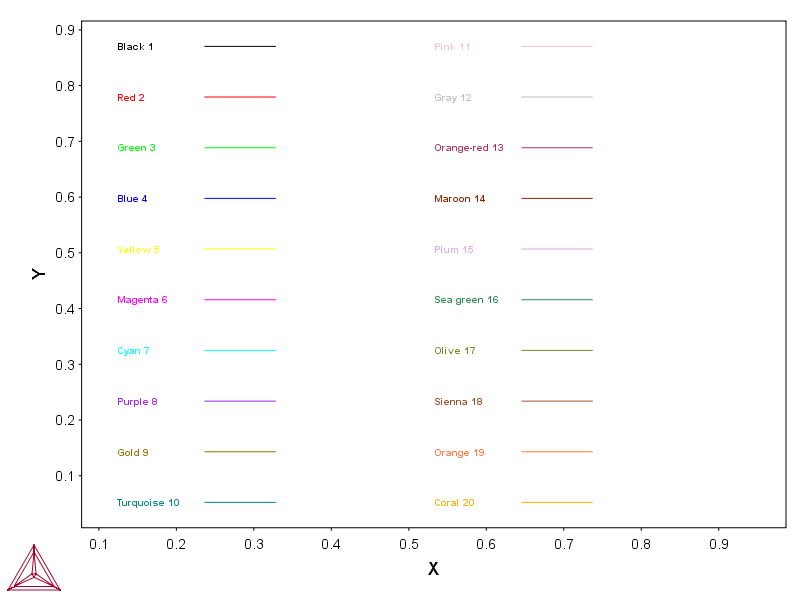

Output Example

Macro Text

$DATAPLOT Example 7 - DIGLIB Colors

PROLOG 1 DIGLIB Colors

XSCALE 0.0 1.0

YSCALE 0.0 1.0

XTYPE LINEAR

YTYPE LINEAR

XLENGTH 15.5000

YLENGTH 11.5000

TITLE DIGLIB Colors

XTEXT X

YTEXT Y

DATASET 1 DIGLIB Colors:

$ DIGLIB Colors:

CHARSIZE 0.3

SYMBOLSIZE 0.5

COLOR 1

0.05 0.95 N' Black 1

BLOCK X=C1; Y=C2; GOC=C3,N

0.175 0.95 M

0.275 0.95 D

BLOCKEND

COLOR 2

0.05 0.85 N' Red 2

BLOCK X=C1; Y=C2; GOC=C3,N

0.175 0.85 M

0.275 0.85 D

BLOCKEND

COLOR 3

0.05 0.75 N' Green 3

BLOCK X=C1; Y=C2; GOC=C3,N

0.175 0.75 M

0.275 0.75 D

BLOCKEND

COLOR 4

0.05 0.65 N' Blue 4

BLOCK X=C1; Y=C2; GOC=C3,N

0.175 0.65 M

0.275 0.65 D

BLOCKEND

COLOR 5

0.05 0.55 N' Yellow 5

BLOCK X=C1; Y=C2; GOC=C3,N

0.175 0.55 M

0.275 0.55 D

BLOCKEND

COLOR 6

0.05 0.45 N' Magenta 6

BLOCK X=C1; Y=C2; GOC=C3,N

0.175 0.45 M

0.275 0.45 D

BLOCKEND

COLOR 7

0.05 0.35 N' Cyan 7

BLOCK X=C1; Y=C2; GOC=C3,N

0.175 0.35 M

0.275 0.35 D

BLOCKEND

COLOR 8

0.05 0.25 N' Purple 8

BLOCK X=C1; Y=C2; GOC=C3,N

0.175 0.25 M

0.275 0.25 D

BLOCKEND

COLOR 9

0.05 0.15 N' Gold 9

BLOCK X=C1; Y=C2; GOC=C3,N

0.175 0.15 M

0.275 0.15 D

BLOCKEND

COLOR 10

0.05 0.05 N' Turquoise 10

BLOCK X=C1; Y=C2; GOC=C3,N

0.175 0.05 M

0.275 0.05 D

BLOCKEND

COLOR 11

0.5 0.95 N' Pink 11

BLOCK X=C1; Y=C2; GOC=C3,N

0.625 0.95 M

0.725 0.95 D

BLOCKEND

COLOR 12

0.5 0.85 N' Gray 12

BLOCK X=C1; Y=C2; GOC=C3,N

0.625 0.85 M

0.725 0.85 D

BLOCKEND

COLOR 13

0.5 0.75 N' Orange-red 13

BLOCK X=C1; Y=C2; GOC=C3,N

0.625 0.75 M

0.725 0.75 D

BLOCKEND

COLOR 14

0.5 0.65 N' Maroon 14

BLOCK X=C1; Y=C2; GOC=C3,N

0.625 0.65 M

0.725 0.65 D

BLOCKEND

COLOR 15

0.5 0.55 N' Plum 15

BLOCK X=C1; Y=C2; GOC=C3,N

0.625 0.55 M

0.725 0.55 D

BLOCKEND

COLOR 16

0.5 0.45 N' Sea green 16

BLOCK X=C1; Y=C2; GOC=C3,N

0.625 0.45 M

0.725 0.45 D

BLOCKEND

COLOR 17

0.5 0.35 N' Olive 17

BLOCK X=C1; Y=C2; GOC=C3,N

0.625 0.35 M

0.725 0.35 D

BLOCKEND

COLOR 18

0.5 0.25 N' Sienna 18

BLOCK X=C1; Y=C2; GOC=C3,N

0.625 0.25 M

0.725 0.25 D

BLOCKEND

COLOR 19

0.5 0.15 N' Orange 19

BLOCK X=C1; Y=C2; GOC=C3,N

0.625 0.15 M

0.725 0.15 D

BLOCKEND

COLOR 20

0.5 0.05 N' Coral 20

BLOCK X=C1; Y=C2; GOC=C3,N

0.625 0.05 M

0.725 0.05 D

BLOCKEND
