P_04: Precipitation of Iron Carbon Cementite

This example is based on [1949Wer] and simulates the kinetics of precipitation of carbides from a BCC Fe solution phase. This isothermal calculation example uses the Precipitation Calculator plus two Experimental File Reader activities to plot the volume fraction of the cementite phase.

Example Settings

System (System Definer)
Database package Demo: Steels and Fe-alloys (FEDEMO and MFEDEMO)
Elements Fe, C
Conditions (Precipitation Calculator)
Composition Fe-0.016C mass percent
Matrix phase BCC_A2
Precipitate phase Cementite
Matrix Phase Data Parameters (Precipitation Calculator)
Grain aspect ratio (click Show Details to display this setting) 1.0
Dislocation density (click Show Details to display this setting) 1.5e11m-3
Precipitate Phase Parameters (Precipitation Calculator)
Nucleation sites Dislocations
Interfacial energy 0.24 J/m2
Growth rate model (click Show Details) Advanced
Calculation Type (Precipitation Calculator)
Calculation type Isothermal
Temperature 102° C
Simulation time 600 000 seconds

Visualizations

Many of our Graphical Mode examples have video tutorials, which you can access in a variety of ways. When in Thermo‑Calc, from the menu select Help → Video Tutorials, or from the main My Project window, click Video Tutorials. Alternately, you can go to the website or our YouTube channel.

Open the example project file to review the node setup on the Project window and the associated settings on the Configuration window for each node. For some types of projects, you can also adjust settings on the Plot Renderer Configuration window to preview results before performing the simulation. Click Perform Tree to generate plots and tables to see the results on the Visualizations window.

When you run (Perform) this example, it takes a few minutes for the calculations to complete.

There is a variety of information shown in the Visualizations window that can be viewed during configuration and after performing the calculation.

  • Thermal Profile: When setting up a calculator on a Configuration window for Isothermal or Non-isothermal Calculation Types, you can preview the profile and adjust settings as needed. When you click a calculator node in the Project window, the matching name of the node is on the tab(s) displayed in the Visualizations window.

    For TTT Diagram and CCT Diagram calculations there is nothing shown for the Precipitation Calculator tab in the Visualizations window as there is no Thermal Profile to be defined.

  • Plot or Table results: After completing the set up and performing the calculation, to view the matching name of the node on tab(s) in the Visualizations window, either click a Plot Renderer or Table Renderer node in the Project window or click the tabs individually in the Visualizations window.

For this Isothermal example, its Thermal Profile is also displayed in the Visualizations window showing the constant temperature entered for this calculation type. The tab names match the node names in the Project window.

The result compares the predicted evolution of the volume fraction of cementite with the measurements of [1949Wer].

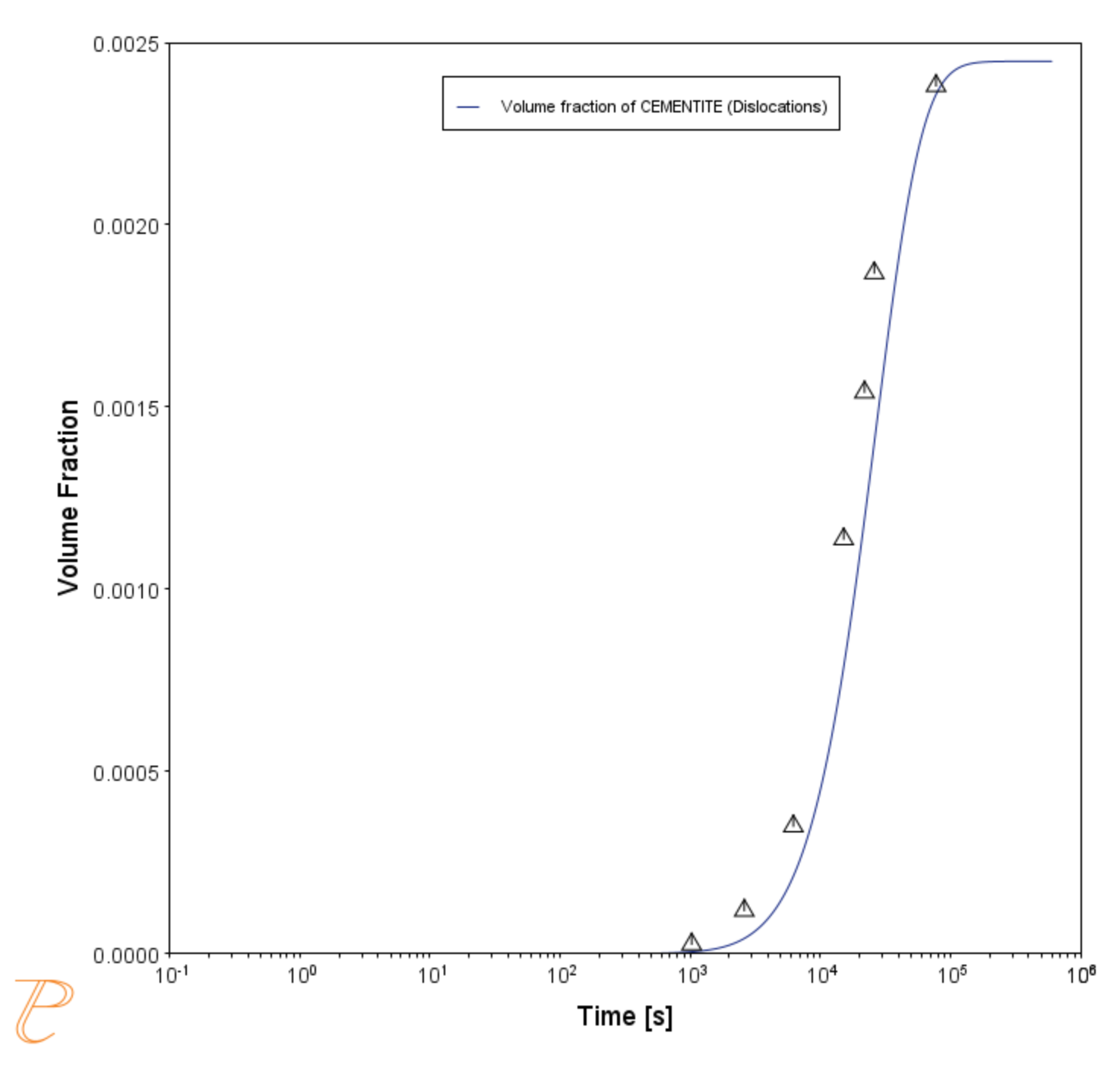

Figure 1: After performing the calculation, you can view the result on the applicable tab. The result compares the predicted evolution of the volume fraction of cementite with the measurements of [1949Wer].

Reference

[1949Wer] C. A. Wert, Precipitation from Solid Solutions of C and N in α-Iron. J. Appl. Phys. 20, 943 (1949).
