T_02: Stepping in Temperature in the Fe-C System
This example shows how the fractions of stable phases vary for an Fe-0.1 mass-% C alloy when the temperature is varied between 500 and 2000 K. It demonstrates the use of the
Project File Information
- Folder: Thermo‑Calc
- File name: T_02_Step_in_temperature_in_Fe-C.tcu
Visualizations
This example is included as a tutorial on our website and as part of the Graphical Mode Examples playlist on our YouTube channel.
Open the example project file to review the node setup on the Project window and the associated settings on the Configuration window for each node. For some types of projects, you can also adjust settings on the Plot Renderer Configuration window to preview results before performing the simulation. Click Perform Tree to generate plots and tables to see the results on the Visualizations window.

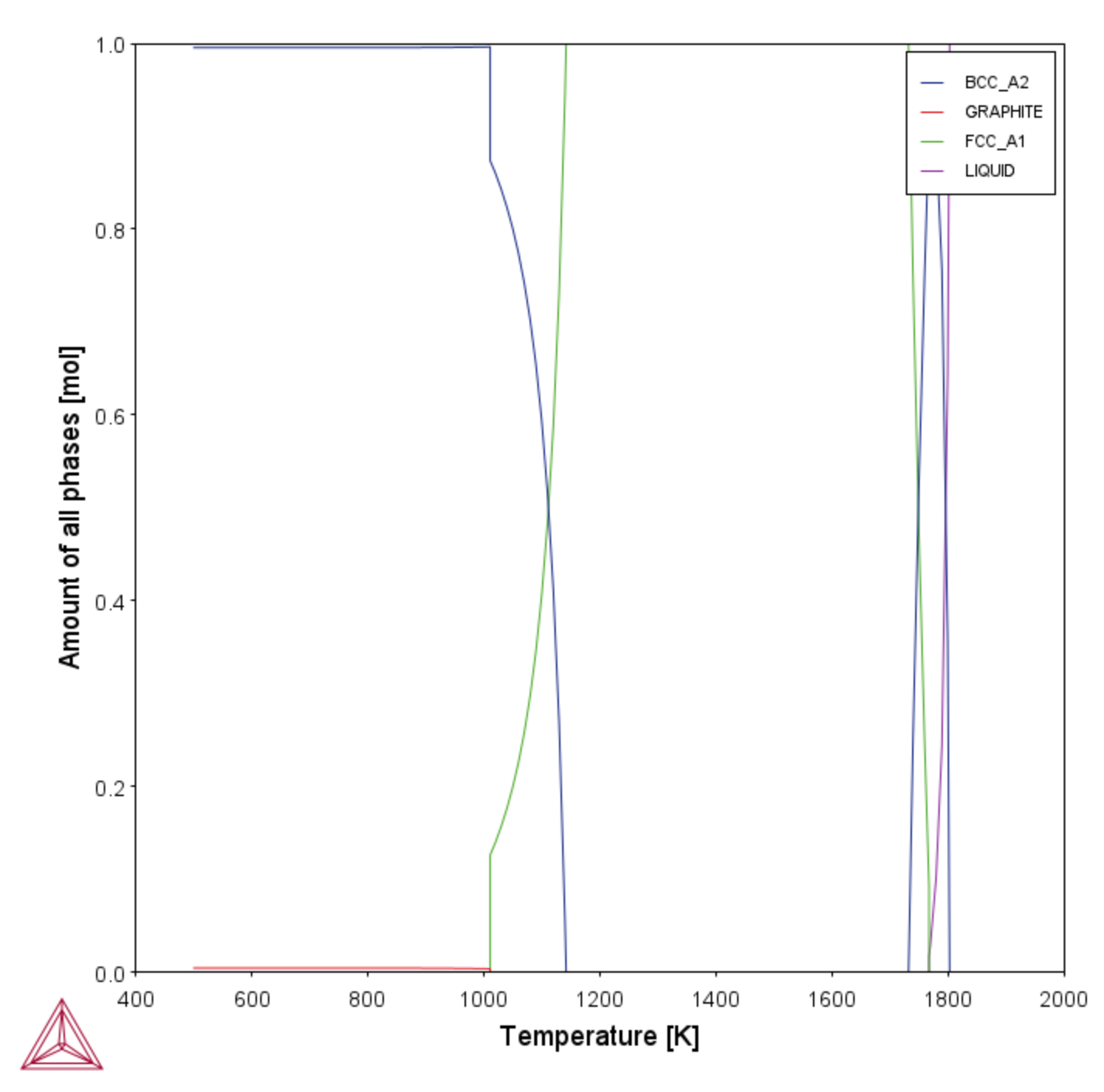

Figure 1: In this example, results are displayed graphically using a Plot Renderer activity.
For the Plot Renderer, there is an option to use the
Table View button to convert plots to table data for all calculation types and calculators.

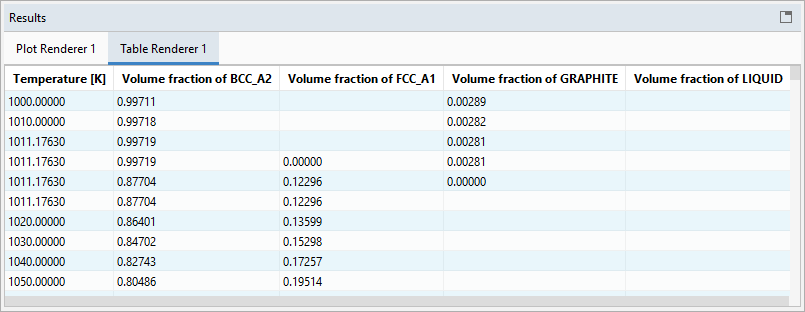

If you want, you can also use a Table Renderer to generate text results instead, as shown in this example after adding a Table Renderer to the Equilibrium Calculator and clicking Perform.
